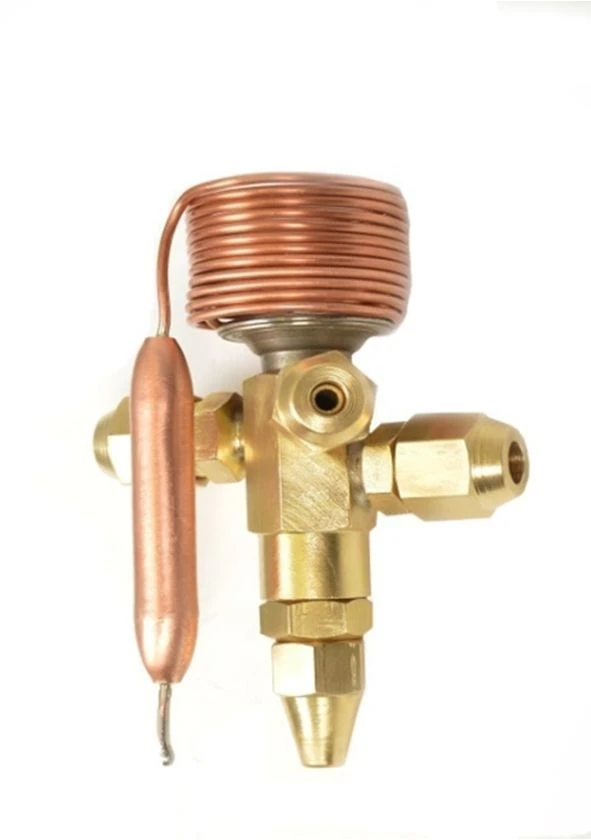

Thermostatic Valve TE1 for Automatic Refrigerant Control in Refrigeration Systems

Thermostatic regulating valve TE1 with external pressure equalisation (hereinafter referred to as valves) is designed for automatic regulation of refrigerant supply to the evaporator of the refrigeration unit depending on overheating of refrigerant vapours behind the evaporator. Controlled media: refrigerants 12,22,134A. Valves 12TE1 are designed for operation on refrigerant 12 in the range of boiling temperature from minus 40 to plus 10 C with condensation temperature up to 70 C.

The valves 12TE1 are designed for operation on refrigerant 12 in the range of boiling temperature from minus 40 to plus 10 C with condensation temperature up to 70 C. Valves 22TE1 are designed for operation on refrigerant 22 in the boiling temperature range from minus 40 to plus 10 C with condensation temperature up to 60 C. Valves 22TVE1 are designed for operation on refrigerant 22 in the range of boiling temperature from minus 50 to minus 25 C with condensation temperature up to 60 C.

The valves are designed for operation on refrigerant 22 in the range of boiling temperature from minus 50 to minus 25 C with condensation temperature up to 60 C. Valves 134TE1 are designed for operation on 134A refrigerant in the boiling temperature range from minus 40 to plus 10 C with condensation temperature up to 70 C. The average service life is less than 12 years.

Average service life is not less than 12 years.
