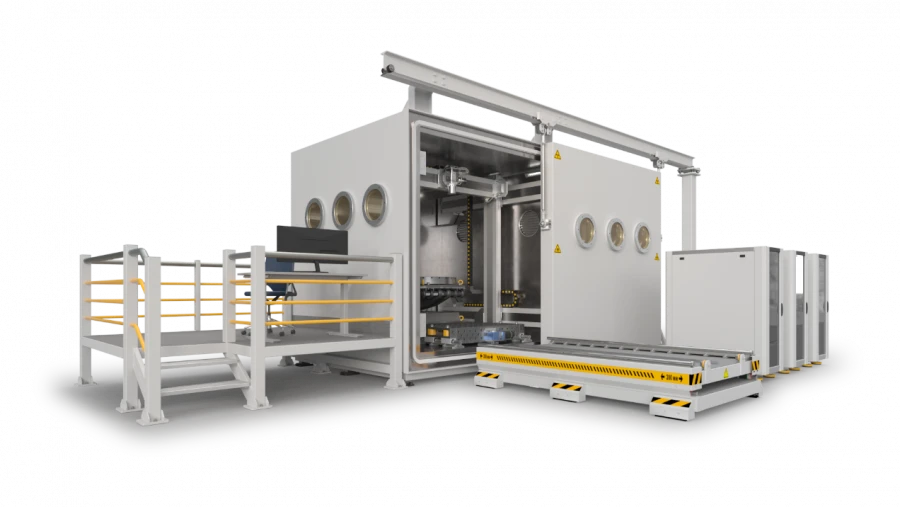

TETA 15E1500 Electron Beam Welding Machine for High-Precision Welding Applications

Electric Welding Machines

Manufacturer:TETA LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

TETA 15E1500.
- General view video surveillance system
- Camera protection against dust
- LED lighting of the vacuum chamber with dust protection
- Welding area lighting
- Laser aiming
- Cooling shields
- Cooled manipulator
- Pyrometric monitoring of the temperature in the weld pool
- Thermal imaging camera
- Feeding of filler powder or wire
- Cryogenic pump for water vapour extraction
- Window protection against dust
- Rear clamping with force stabilisation
- Melting sensor
- Automatic pointing
- Automatic focusing
- Freely programmable beam deflection trajectory
- Documentation of welding parameters, printing of reports
- Remote maintenance via Internet

Specifications

Type of product according to PP RF 616

High-vacuum electron-beam installations

Power

15 kW

Internal dimensions of the vacuum chamber

2500×2500×2500 mm

Accelerating voltage

60 kV

Maximum beam current

250 mA

Beam current stability

0.1 mA

Beam deflection angle

±7°

Cathode type

Indirect heating

Pumping time to operating vacuum

Manipulator, number of axles

5 pcs

Movement in X, Y, Z axes

1500, 1200, 1400 mm

Travel speed in X, Y, Z axes

0.1 - 50 mm/sec

Gun tilt angle

±90°

Faceplate diameter

900 mm

Rotation speed

0,1 - 5 rpm

Power supply voltage

3 phases, 380 V, 50(60) Hz

Dimensions

9500x6000 mm

Mark

THETA 15E1500

Type

Electron beam welding unit

Equipment

Options available

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
