Available for Import

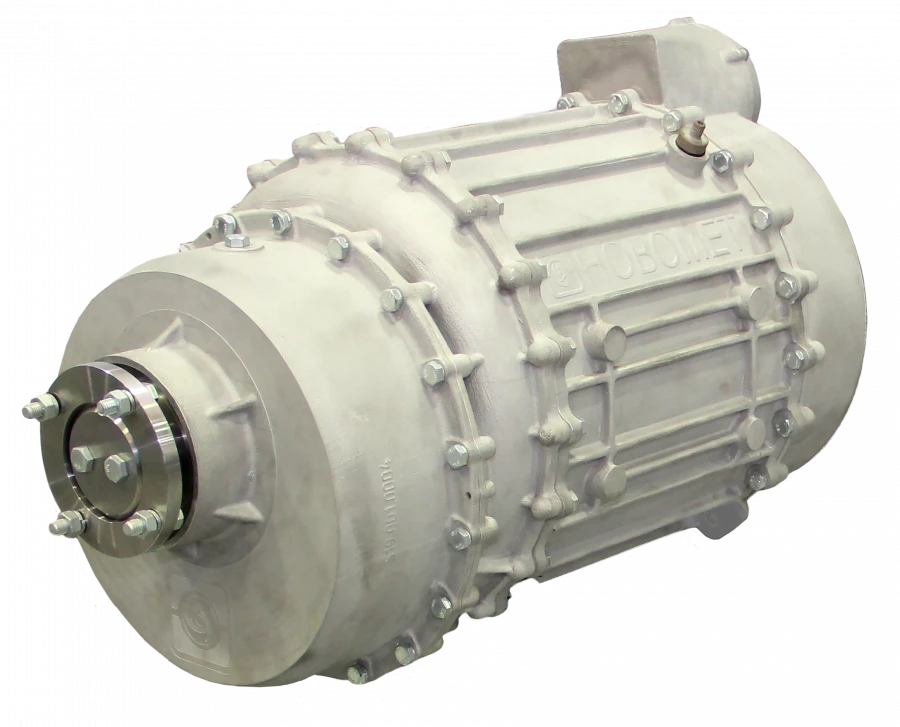

TRACTION MOTOR TEDN200-650-2530-4500/2-1-1
Manufacturer:
NOVOMET-PERM OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Electric traction motor TEDN200-650-2530-4500/2-1-1 produced by JSC "Novomet-Perm" is designed for application in electric drive system of freight and public electric transport.
Specifications
Working range of inverter DC link voltages
550 to 750 V
Operating frequency range
0 to 435
Nominal speed
637
Speed range for S2 mode (30 min) with constant power.
637 to 2530
Maximum speed
not more than 2530
Torque at 30-minute output shaft power, N-m, at speeds up to 637 rpm
2957
Maximum useful torque at the output shaft, N-m, at speeds up to 637 rpm
4500
Максимальный КПД
Not less than 91 %
Weight
No more than 300 kg
Gearbox ratio
3,36
Power
130 kW
Power
200 kW
Power
300 kW
Motor current with gearbox
267 A
Motor current with gearbox
375 A
Motor current with gearbox
530 A
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
