T-Shaped Small Plates 3.5, Article 454.004 Available for Import

T-Shaped Small Plates 3.5 for Distal Radius Fracture Fixation (Article 454.004)

Fracture Treatment Devices
Manufacturer: OSTEOMED-M LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

T-plate small 3,5, item 454.006

Description

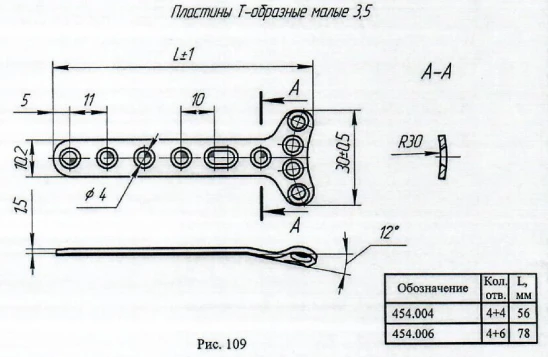

Non-sterile implantable plate made of solid material intended for steosynthesis of fractures of the distal metaepiphysis of the radius (rear access). The shape is T-shaped. Universal design for the right and left side.

Diaphyseal part: combined 8-shaped holes for insertion of screws with angular stability and cortical screws without angular stability, possibility of deviation of cortical screws from the nominal axis of screw insertion. Metaphyseal part: rounding in the middle towards the distal part, possibility of insertion of screws with angular stability. The perimeter edges of the plate are rounded.

Laser marking of the product article. Sterilisation required before use.

Specifications

Material
Titanium alloy
Width
10.2 mm
MRI compatibility
Armoured glass
Sterility
no
Individual packaging
As required by GOST R ISO 14630-201
Length
56 mm
Thickness
1.5 mm
Number of holes in the diaphyseal part
4 pcs
Metaphyseal width
30 mm
Number of screw holes in the metaphyseal part
4 pcs
Diameter of angular stability screws and cortical screws
3.5 mm
Form
T-shaped

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
