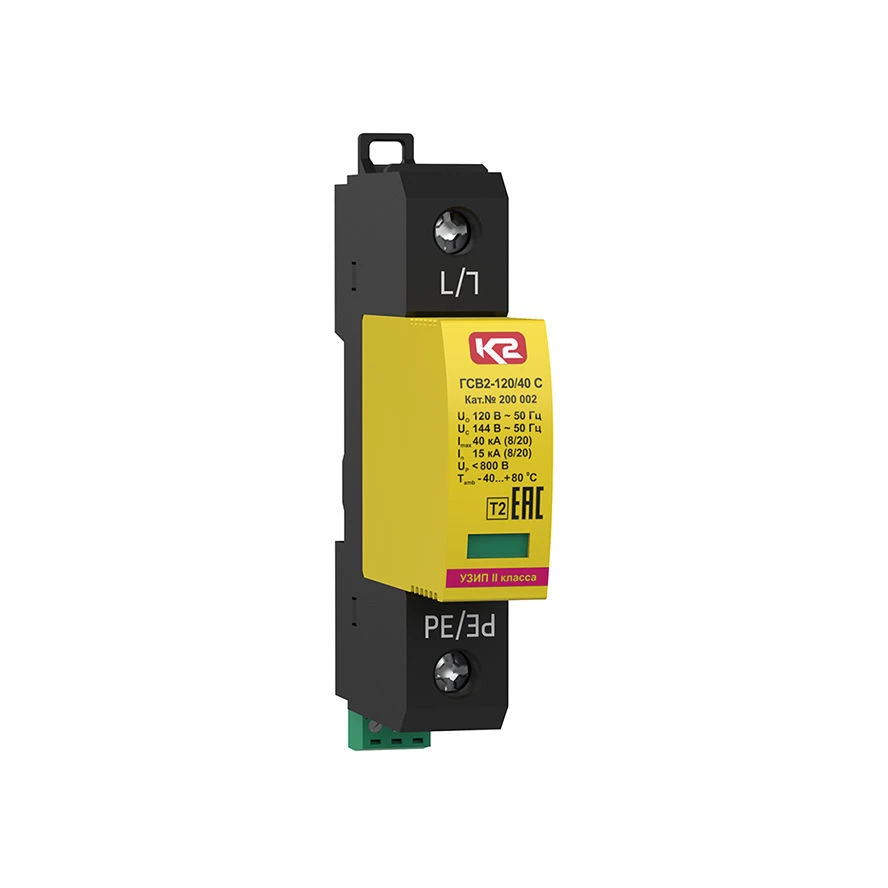

Surge Protection Device GSV2-120/40 C (LT) for Electrical Systems

Available for Import

Surge Protection Device GSV2-120/40 C (LT) for Safe Electrical Networks

Surge Protection Devices

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Single-phase modular ultrasonic protection devices of test class II of limiting type for networks with earthing system of TN-C, TN-S type. Uo = 120 V AC. Imax(L/PEN) (8/20) = 40 kA.

In(8/20) = 15 kA. With remote signalling. Used for protection of phase conductor in AC systems and poles in DC systems.

They are installed within 1 - 2 lightning protection zones (in accordance with GOST R IEC 62305-1 and CO-153-34.21.122-2003).

Specifications

Surge protection class

Rated operating voltage Un

120 V

Housing material

Polyamide PA6, UL94 V-0

Dimensions, WxWxH

17.5x102x79 mm

Number of channels

1 pcs

Maximum operating current

160 A

Weight

85 year
