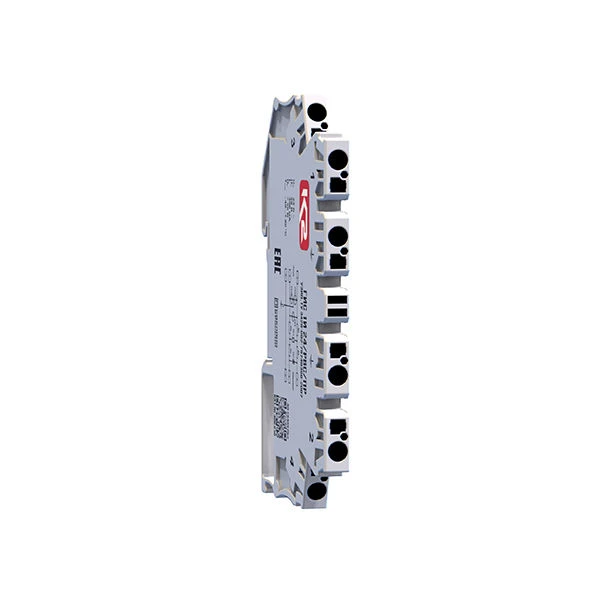

Surge Protection Device GIS 1I 24/RVS/PR Exi for Industrial Automation Applications

Explosion-proof surge protectors GIS 1I */RVS/PR Exi series, TU 3428-002-79740390-2007 are designed to protect equipment of distributed networks of industrial automation equipment (ACS, ASCUE, etc.) from impulse overvoltages (lightning protection, protection from electrostatic discharges, etc.) coming from the side of intrinsically safe circuits within 1 - 2 lightning protection zones in accordance with GOST R IEC 62305-1-2010. The devices are assembled according to the three-stage protection scheme: arrester-varistor-suppressor. They are produced for rated operating voltage Uo= 24 V DC, rated current IL= 0.3 A.

Capable of passing the rated discharge current In (8/20)=5 kA, In (10/350)=0.5 kA. Data transfer rate up to 1 Mbit/s. Made in a 6.2 mm thick housing (terminal with flat spring clamps without side plug) for installation on DIN-rail 35 mm.

The side plug is to be purchased separately. Number of protected pairs of conductors - 1.
