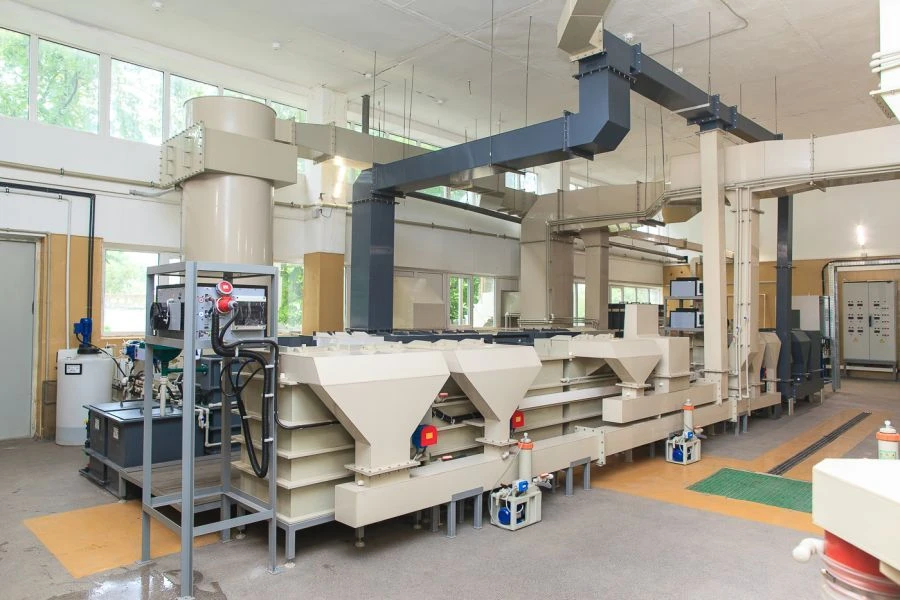

Surface Preparation and Coating Line for Electroplating, Chemical, and Anodizing Processes

Available for Import

Surface Preparation and Coating Line for Electroplating, Chemical, and Anodizing Applications

Electroplating Equipment

Manufacturer: LLC "NPO "PROCESS"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Galvanic lines are designed for applying protective and decorative coatings on parts made of various materials, in order to give the treated surface the necessary specified properties. Processing of parts is carried out by dipping in the appropriate baths of the line on the necessary equipment (suspension, drum, basket, etc.) according to the approved technology. The baths of the galvanic line are equipped with lids, which allows to reduce the amount of emission of harmful substances into the working area. In order to remove the emitted vapours with pollutants from the surface of the solution, the baths are equipped with on-board suctions with slide gate valves, allowing to regulate the flow rate of the removed air. Each bath is equipped with a stand with adjustable supports, which allows to install the equipment of the line with high precision.

Specifications

Line operation

2 shifts (8 hours/shift)

Input voltage, V

380 V

Climatic version

UHL category 4.2 according to GOST 15150

Grounding system

TN-S

Installed electric power

4 kW

Volume of air removed by local ventilation system

7355

Weight

3 kg

Line length

16007 mm

Line width

1679 mm

Line height

1642 mm

Model

LGR

Compressed air consumption for mixing, nm3/hour

1.2

Minimum (calculated) water consumption for washing operations, litres/hour

100

Maximum water flow rate for rinsing operations, litres/hour

300

Designated service life

10 year

Capacity of the line, kg/year

76722

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
