Stedis Biomechanical Feedback Rehabilitation System for Gait Assessment

Functional Diagnostic Devices

Manufacturer: NEUROSOFT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

System for diagnostics of motor pathology and rehabilitation treatment by biofeedback method "Stadis" (II. System for diagnostics of motor pathology and rehabilitation treatment by biofeedback method "Stadis" (III).

Description

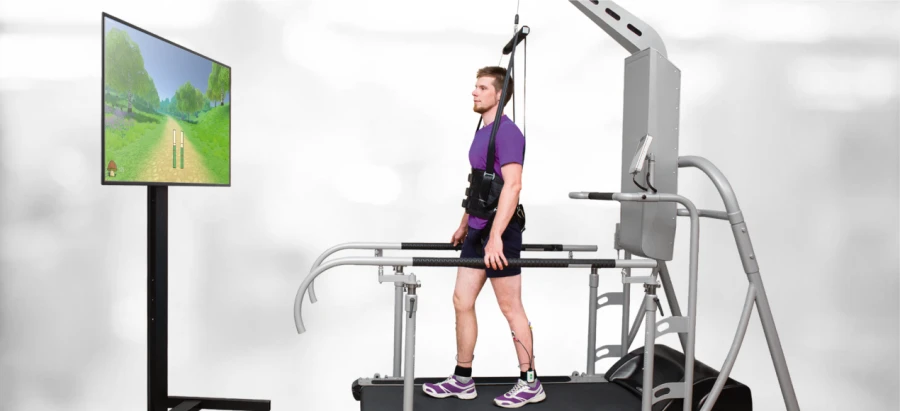

The specialised biofeedback simulator "Stadis" allows to assess walking parameters and to carry out rehabilitation based on the results of the examination. The Stadis simulator uses Neurosens biometric sensors to record walking parameters. These miniature devices are mounted on the patient's shins (and/or back) and record rotational velocities and accelerations in three axes, as well as electromyograms in two channels.

Up to 20 walking parameters can be recorded in total. The sensors are wireless, battery-powered and transmit data to the software via Wi-Fi. Their operation is not affected by nearby metal structures.

The Biofeedback Walking Assessment and Recovery Trainer allows for objective assessment of walking function using biometric sensors and its recovery using biofeedback. Learning to walk correctly takes place in a fun and engaging game environment.

Specifications

Appointment of the device

Designed for: 1) analysis of biomechanical/neuromuscular function of walking using specialised equipment; 2) neuromuscular rehabilitation therapy of various anatomical areas based on the patient's interaction with specialised equipment

Method of motion registration

Biometric sensors

Automatic calculation of walking time parameters, walking phases, spatial parameters of walking, kinematic parameters of walking

availability

Presence of biofeedback (biofeedback).

availability

Presence of motivating 3D game environments

availability

Ability to pre-assess walking function prior to training.

availability

Possibility to select any recorded walking parameter (temporal, spatial, EMG or kinematic) as B

availability

Ability to change the complexity of training tasks during training.

availability

Possibility of carrying out training in automatic mode (automatic selection of training difficulty)

availability

Possibility to control other (not selected as parameters of the EBS) parameters of the patient's walking during training

availability

Video recording of evaluation and training procedures

availability

Automatic generation of evaluation and training protocol

availability

Saving completed assessments and drills, as well as their protocols in the database

availability

Possibility to change the list of calculated parameters for biomechanical/neuromuscular function analysis

availability

Ability to view previously completed walking function assessments/trainings and their protocols.

availability

Ability to create custom templates for walking function assessment and training protocols

availability

Built-in protocol template editor

availability

Ability to edit evaluation and training protocols

availability

Ability to include graphs, figures and tables in the protocols

availability

Availability of a consolidated protocol to track the dynamics of rehabilitation

availability

Base of medical norms on basic parameters of walking (phases of walking, temporal parameters, spatial parameters, kinematics)

availability

Monitoring the condition of equipment during evaluations and drills

availability

Types of registration channels

accelerometric, gyroscopic, electromyographic

Sensor weight

Not more than 40 (± 4) g

Dimensions of the sensor

Not more than 60×40×17 (± 2) mm

Wireless communication with PC

availability

communication range

Not less than 10 metres in line of sight

Maximum number of sensors simultaneously linked to one PC

Not less than 12 pcs.

Sensor synchronization accuracy

max. 0.005 s discrepancy

Quantization frequency

at least 200 Hz

Input range of measured accelerations in each of the three axes

At least ±16g

Permissible error of acceleration measurement in each of the three axes

not more than ±(0.04 g + 5% of the measured value)

Input range of angular velocities in each of the three axes

Not less than ± 2000 deg/sec.

Permissible error of angular velocity measurement in each of the three axes

not more than ±(0.5 deg/s + 2% of measured value)

Total number of differential channels per 1 sensor

At least 2

In-phase noise reduction (CMRR)

At least 100 dB

Lower bandwidth limit at level (-3 ± 0.5) dB in EMG measurement mode

max. 5 Hz

Upper limit of the bandwidth at the level of (-3 ± 0.5) dB in the EMG measurement mode

at least 500 Hz

Natural noise level in EMG measurement mode

Not more than 2 µV RMS

Input differential resistance

At least 100 megohms

EMG signal input range

max. 0.07 µV - 20 mV

EMG signal measurement error in the input range from 0.07 µV to 20 mV and at the bandwidth from 5 to 500 Hz

not more than ±(7 ?V + 5% of the measured value)

Suppression of mains interference by a switchable tap selector filter

At least 40 dB

Function for determining the sub-electrode impedance

availability

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
