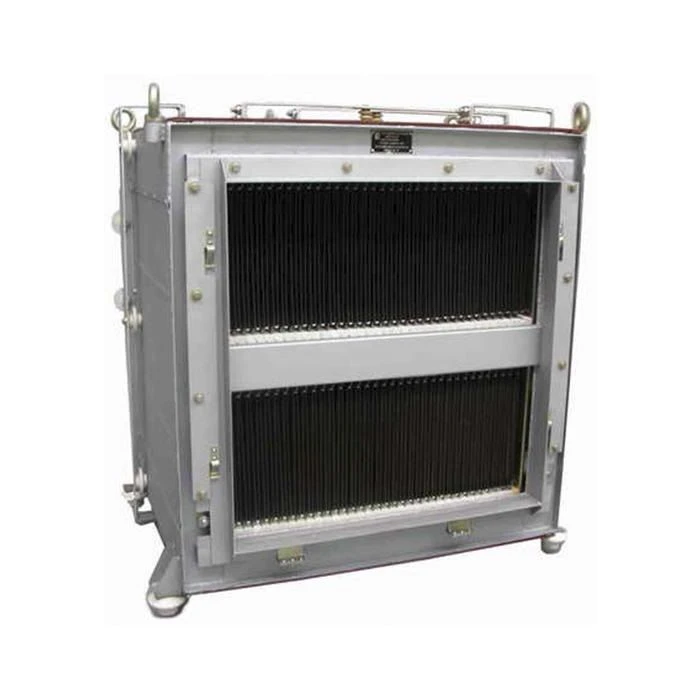

Starting and Braking Resistor Unit BPTP-63-U2 for Electric Locomotives Applications

Specialized Electric Devices

Manufacturer:ELECTRORECTIFIER PJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Block of starting and braking resistors BPTR-74-U2

Description

Block of starting and braking resistors BPTR-63-U2 is designed for installation on electric locomotives of EP2K type to limit current of traction motors in traction mode and to extinguish electric energy in rheostatic braking mode.

Specifications

Rated insulation voltage

3000 V

Weight

545 kg

Length

1135 mm

Depth

890 mm

Height

1175 mm

Resistance of section 1-2 at rated current

0.966 ohm

Resistance of section 2-3 at rated current

0.388 ohm

Resistance of section 3-4 at rated current

0.234 ohm

Resistance of section 4-5 at rated current

0.564 ohm

Resistance of section 5-6 at rated current

0.086 ohm

Resistance of section 6-7 at rated current

0.425 ohm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
