Available for Import

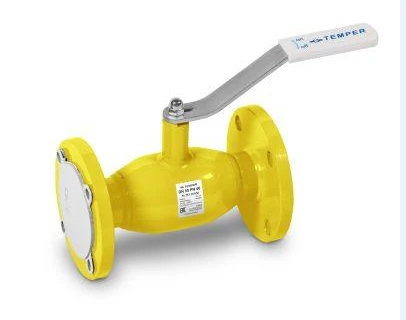

Standard Flanged Ball Valve PN25 for Efficient Gas Flow Control
Manufacturer:
TEMPER LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Connection type:
flanged
Working Environment:
Natural gas, liquefied petroleum gas and other gaseous media not aggressive to the materials of the valve components.
flanged
Working Environment:
Natural gas, liquefied petroleum gas and other gaseous media not aggressive to the materials of the valve components.
Specifications
Airtightness class
Class "A" GOST 9544-2015
Diameter
100 mm
Nominal pressure
25 MPa
Construction length
300 mm
Weight
19.4
Connection type
flanged PN25
Aisle
Standard
Flange for mounting the actuator
without flange
Execution
ordinary
Minimum temperature, up to
-40 °C
Maximum temperature, up to
200 °C
Service life, at least
40 year
Warranty period
3 year
Warranty period, cycles
10000
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
