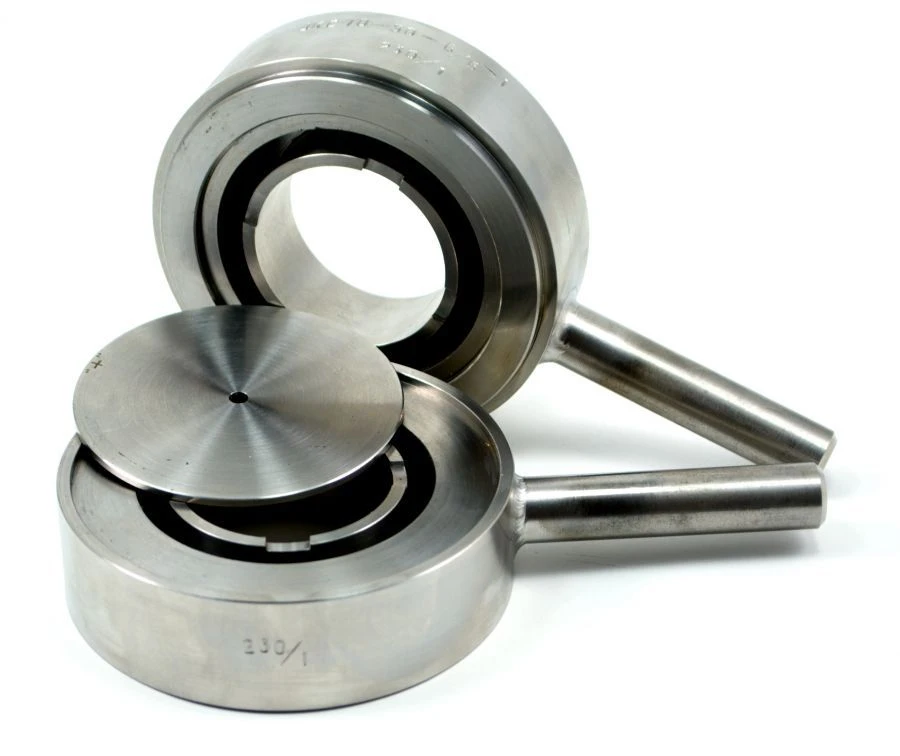

Standard Diaphragm DKS for Creating Pressure Differential in Liquid and Gas Measurement
Manufacturer:
ITek BBMV LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Creating differential pressure when measuring the flow of liquids, gases, water vapour by the method of variable differential pressure.
- Installed in pipeline flanges using intermediate housing-ring chambers;
- Nominal pipeline diameter from 50 to 500 mm;
- Nominal pressure in the pipeline up to 10 MPa;
- Angular method of pressure sampling
In the standard version it is manufactured with one pair of pressure tapping connections and provides for welding of impulse lines with diameter of 16 mm.
- Installed in pipeline flanges using intermediate housing-ring chambers;
- Nominal pipeline diameter from 50 to 500 mm;
- Nominal pressure in the pipeline up to 10 MPa;
- Angular method of pressure sampling
In the standard version it is manufactured with one pair of pressure tapping connections and provides for welding of impulse lines with diameter of 16 mm.
Specifications
Nominal pressure
Up to 10 MPa
Nominal diameter
50 to 500 year
Assigned service life
20 year
Part materials
Steel 12?18?10? GOST 5632; Steel 20 GOST 1050; Steel 09G2S GOST 19281; Paronite GOST 481
Operating medium
Liquid, steam, gas
