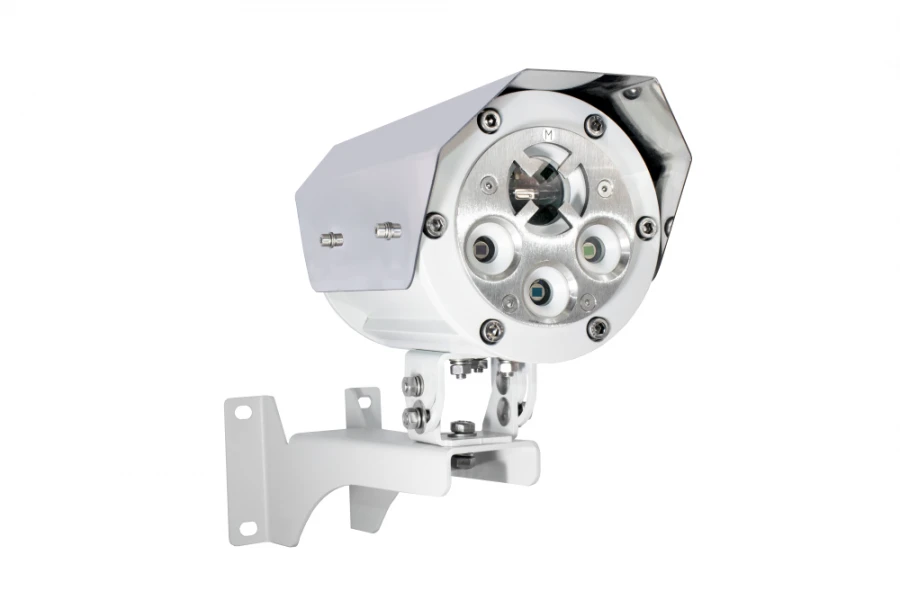

Spectron-701-Exd-A Flame Detector with 3 IR Sensors Available for Import

Spectron-701-Exd-A Flame Detector for Open and Enclosed Spaces

Fire Alarm Detectors
Manufacturer: SPEKTRON LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

3 IR fire flame detector Spectron series 701-Exd. Immunity category - 2. Super noise immunity to heavy optical interference.

They are used in open areas and in enclosed spaces. Detection range on TP-5 - 30 metres, on TP-6 - 30 metres. Viewing angle of 90°.

Upit - 9..28V. Idezh - 10mA, Ipozh - 10mA. I with heating up to 290mA.

Temperature range from -70 to +90°C, short-term operation of the detector at temperatures up to +135°C is possible. IP66/IP68. Overall dimensions (HxWxG) 200x120x300.

Specifications

Weight
4 kg
Overall dimensions
300x200x125 mm
Viewing angle
Flat grinder, Specialised grinder
Recovery time
8
Type of climatic version according to GOST 15150
UHL1, OM1
Resistance to three electric arc or argon welding stations
4 m
Connection
4-wire
Degree of protection of the shell, IP
68
Operating temperature range
Flat grinder, Specialised grinder °C
Operating temperature
(55);+90 °C
Designation
FIRE FLAME DETECTOR IP330
Assignment
Recommended for fire alarm systems and fire extinguishing systems
Explosion protection marking
1Ex db IIC T6...T4 Gb X / Ex tb IIIC T85ºC...T135ºC Db X
Housing material
Aluminum alloy
Power supply voltage
9...28 V
Sensitivity levels
T5/T6

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
