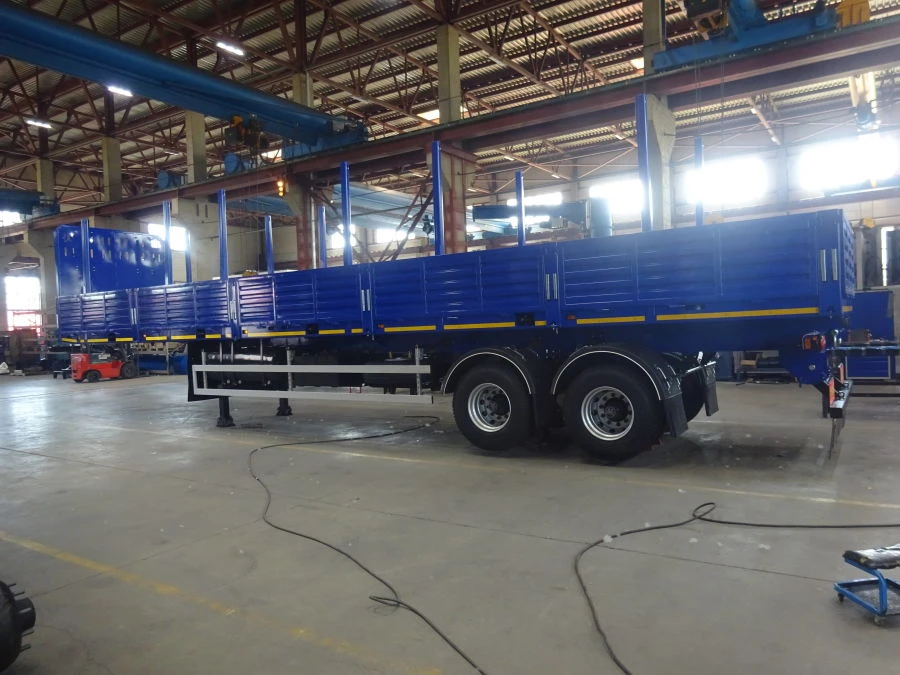

Semi-Trailer 98131D with Load Space Framework and Platform

Available for Import

Semi-Trailer 98131D for Efficient Long Cargo Transportation

Heavy Duty Trailers

Manufacturer:NOVOSIBARZ OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The trucks are designed for carriage of assortment and other long cargoes, with container locks installed - containers of various types, including containers and tank containers, removable tanks, removable tank bodies designed for carriage of dangerous goods. The technically permissible maximum mass of the vehicle is 48 tonnes. Loading space - load-bearing frame with all-metal open platform, with front protective shield, with length-sliding / width-sliding chocks, removable sides.

Coupling kingpin diameter 50.8 mm or kingpin diameter 88.9 mm. Axles 12 tonnes manufactured by "Plant" Ltd. Tyres 11 R22,5; 12,00 R20; 295/80 R22,5; 315/80 R22,5 produced by "Cordiant" JSC / "Nizhnekamsk Tyre Plant CMK" LLC / "Nortek" LLC / "Omskshina" JSC.

Wheel discs manufactured by LLC AccuRide Wheels Russia or PJSC ChKPZ. Receiver manufactured by OOO TD "AUTOTECHNOLOGIA". Lighting equipment manufactured by OOO "Atlanta".

Floor level crane manufactured by VBK Vostok Ltd.

Specifications

Type of semi-trailer

Onboard

Gross weight

48 t

Base machine type

truck

Climatic version

UHL

Type of semi-trailer

Sorting truck; flatbed truck; container truck; general purpose truck

Number of axles

2 pcs

Front track

1860...2068 mm

Rear track

1860...2068 mm

Axle load capacity

B1/B8 2100/900 MHz t

Maximum length

16500 mm

Width

2550...3300 mm

Maximum height

4000 mm

Ergonomic parameters

Paint coatings used for the exterior surfaces of semi-trailers, allow the possibility of painting or repainting them with natural drying paints; the force required to lift the spare wheel does not exceed 500 N (50 kgf). When using the mechanism

Warranty period

B1/B8 2100/900 MHz

Reliability parameters

Average service life before the first major overhaul under the first category of operating conditions in compliance with all operating and maintenance rules specified in the operating manual - not less than 100,000 km; MTBF under the first category of cond

Scope of application

Designed for transportation of assorted and other long cargoes, with installed container locks - containers of various types, including containers and tank containers, detachable tanks, detachable tank bodies, designed for transportation of cargoes of vari

Base

3200...9500+1300..2100

Vehicle kerb weight

6000...14000 kg

Technically permissible maximum weight of the vehicle

48000 kg

Technically permissible maximum load on the coupling ball bar

23536

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
