Selector Block for Conference Systems BС VABM.465287.005

Selector Block for Conference Systems BС VABM.465287.005

Brand: VENTUR-SERVICE

$360 - $1,500 USD

MOQ: 5 pieces

Key Features

PPM input / PDP output: Symmetrical with transformer isolation, R=600 Ohm

Уровень ПРМ/ПРД: -13dB/-13dB

Volume adjustment from channel to IRM (PDM level), operative: -60÷0 dB

Volume adjustment from IRM to IRM ("studio"), operative: -60÷0 dB

Supplier Information

VENTUR-SERVICE LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

More from VENTUR-SERVICE

Individual Working Place for Chairman IRM-P VABM.465287.002-01

$90-$300

Mini Studio MCR.16 for High-Quality Voice Communication

$90-$300

Telecommunication Line Matching Device with Four-Wire Communication Channels UST VABM.465225.001

$180-$720

Wall-Mounted Mini Studio for Communication MCR.N VABM.465287.015

$90-$300

Reception Device for MAX N.e Complex Model VABM 465.275.2.04

$90-$300

Description

Selector unit is designed for use as part of terminal trace devices (studios) and conference systems, with output to 4-wire PM channel in the organisation of corporate complexes of communication meetings.

Specifications

PPM input / PDP output

Symmetrical with transformer isolation, R=600 Ohm

Уровень ПРМ/ПРД

-13dB/-13dB

Volume adjustment from channel to IRM (PDM level), operative

-60÷0 dB

Volume adjustment from IRM to IRM ("studio"), operative

-60÷0 dB

Volume adjustment from IRM to channel (PRD level), operative

-13÷0 dB

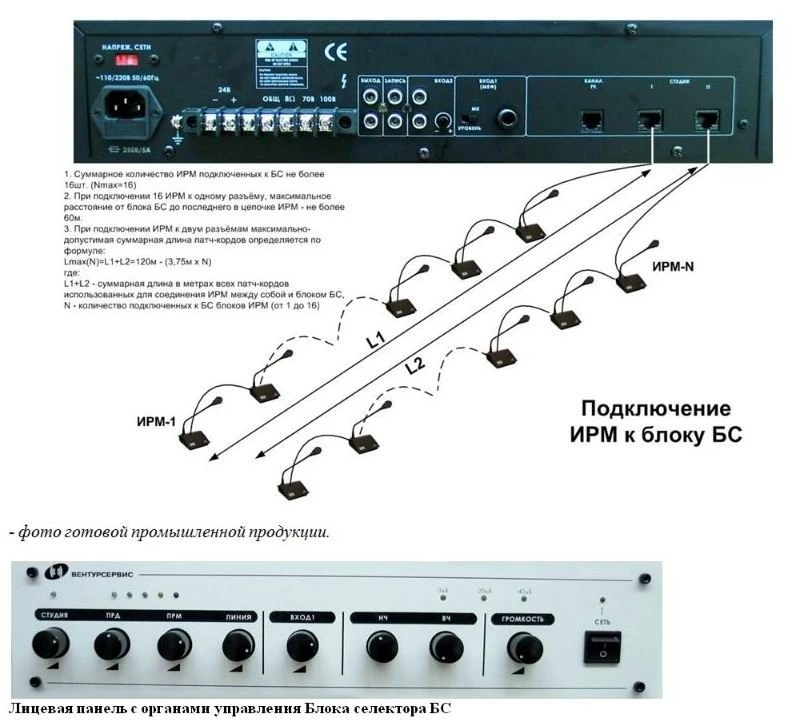

Maximum distance of IRM from selector unit with 16 connected IRM consoles

60 m (when the number of IRMs connected to one connector decreases, the maximum distance increases proportionally)

Number of microphone inputs

1 µGy

Number of line inputs

1 µGy

Reproducible frequency range

50-20000 Hz

Rated voltage at the line output

0,775 ?

Rated power amplifier output voltage

100V; 70V

Maximum output power, not less than

120 W

Rated impedance of acoustic systems

8 ohms

RMS harmonic coefficient, not more than

1%

Output signal-to-noise ratio not less than

75 dB

Power consumption from AC mains, not more than

220 ?

Overall dimensions

85x425x305 mm

Weight

8.5 kg

Product composition

Main module of selector block BS. Set of brackets with fasteners and cables to the BS selector unit. Power cord with euro plug. Telephone wall socket (TJCM-6p4c). Telephone cable (3 m) with 6p4s plugs on the ends, radio microphone RMK-900 VABM.300.215* in

Maximum number of IRMs connected to the BS unit

16
