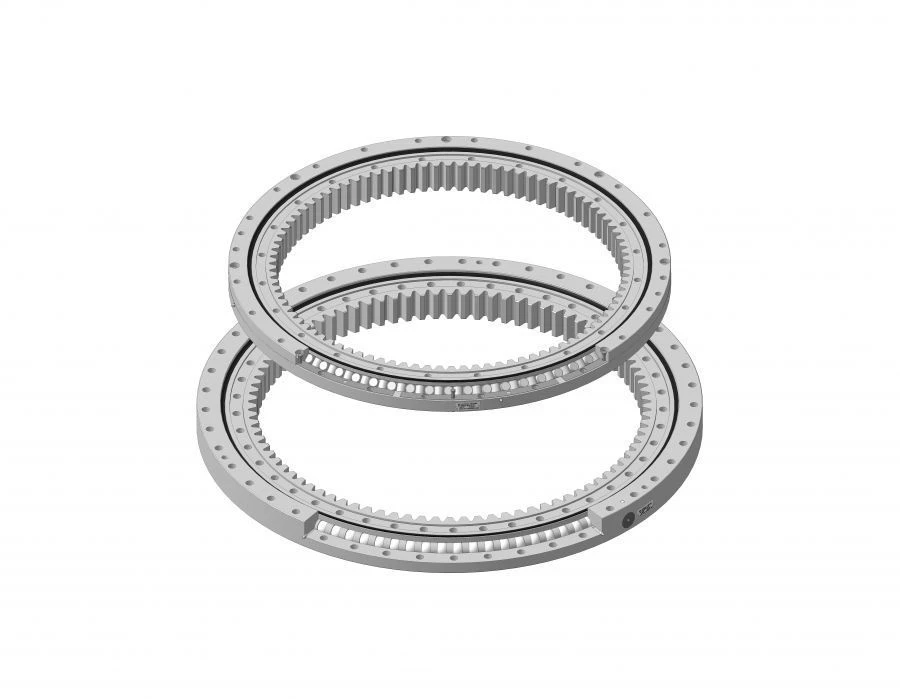

Rotating Support OP-1600.2.2.14.2.R U1 for Efficient Rotation Applications

Support rotary OP-1600.2.2.14.2.2.R U1 is designed for use as a unit providing rotation of the rotary part of the product relative to the non-rotary part with a frequency of not more than 16 rpm and transfer of loads (load torque, axial and radial forces). Type of construction - roller/ball; Type of meshing - internal; Gearing modulus - 14 mm; Number of teeth - 88 pcs; Material of rings: Steel 55 GOST 1050-88 (normalisation); Steel 45KhN-3-TO GOST 4543 (improvement). Weight - 557 kg.
