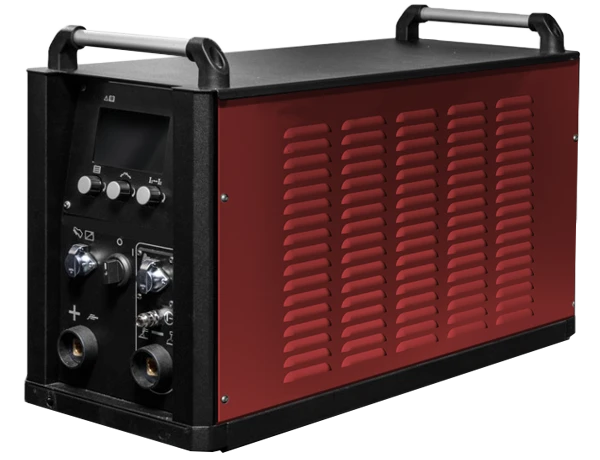

ROSWELD TIG 400 P DC Argon Arc Welding Machine for Steel and Titanium

Electric Welding Machines

Manufacturer: ZTI LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Industrial inverter welding machine with welding parameters software for direct current argon-arc welding of steels, titanium, copper-containing alloys at currents up to 380 A inclusive in 100% argon. It supports all types of pulse welding, welding with high-frequency modulation, various control algorithms, contact/non-contact ignition and so on. It has a modular design of the power part and provides: IP 34, PV 100% at maximum current in the temperature range -40...+40° C, efficiency 96%.

The control tact of welding arc parameters is 6.6 µs. Complete with a system of remote control and documentation of parameters PAK WeldWeb..

Specifications

Type of product according to PP RF 616

Arc welding equipment;

Minimum welding current

3 A

Rated welding current

380 A

Operating voltage

380 V

Weight

43.4 kg

Mains frequency

50...60

Manual arc welding

20-350 ?

argon-arc welding

3-380 ?

No-load voltage

93 V

Maximum power consumption, kW

Width

300 mm

Dimensions

740x300x460 mm

Mark

rosweld

Equipment

power source, autotig cold wire feeder, liquid cooling unit for bjo tig torch, cylinder cart, welding torch, ground cable, cable package, weld web remote parameter control system.

Load Duration (LL)

100 %

Type of welding voltage regulation

unregulated

AC mains supply voltage

300...500 V

Type of welding current

permanent

Maximum welding current

380 A

Height

460 mm

Length

740 mm

Operating modes (continuous/pulse)

pulsed and short-pulsed

EFFICIENCY

96 %

Insulation class

Degree of protection

ip 34

Current intensity at 100% SP

380 A

Cos f

0,99

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
