Road Weight and Dimension Control System "SVK" for Automatic Measurement Applications
Manufacturer:
TENZO-M OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

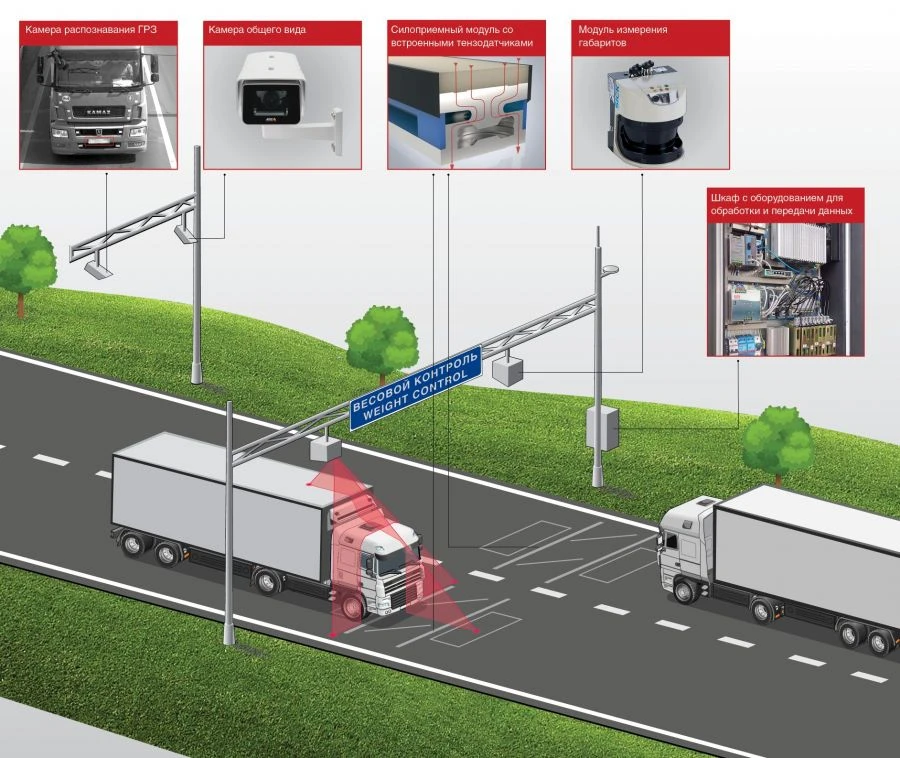

Systems of road weight and dimensional control "SVK" are designed for automatic measurement of axle load, load from a group of axles,
load from a wheel (group of wheels) of a moving vehicle (hereinafter - TC),
determination of its total mass, measurement of overall dimensions (length, width, height),
length, width, height, speed and centre-to-centre distances of the vehicle, determination of coordinates, synchronisation of the internal time scale with the national time scale.
time scale with the national time scale UTC(SU).
load from a wheel (group of wheels) of a moving vehicle (hereinafter - TC),
determination of its total mass, measurement of overall dimensions (length, width, height),
length, width, height, speed and centre-to-centre distances of the vehicle, determination of coordinates, synchronisation of the internal time scale with the national time scale.
time scale with the national time scale UTC(SU).
Specifications
Tolerance limits of relative error when measuring the total mass of the vehicle
±5 %
Limits of permissible relative error of axial load and axle group load measurements of TCs
±10 %
Limits of permissible absolute error of TC center-to-center distances measurements
±0,03 m
Limits of permissible absolute error of measurements of overall dimensions of the vehicle, length
±0,6 m
Limits of permissible absolute error of measurements of overall dimensions of the vehicle, width
±0,1 m
Limits of permissible absolute error of measurement of overall dimensions of the vehicle, height
±0,06 m
Range of speeds at which the accuracy of measurements of axle loads, axle group loads, gross vehicle weight, gab is ensured
1 to 140
Limits of permissible absolute error of vehicle speed measurements
±1
Limits of permissible absolute error of synchronisation of internal time scale with national UTC(SU) time scale, ms
±1
Limits of permissible absolute error of coordinates determination (at geometrical factor of accuracy variation not more than 4)
±5 m
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
