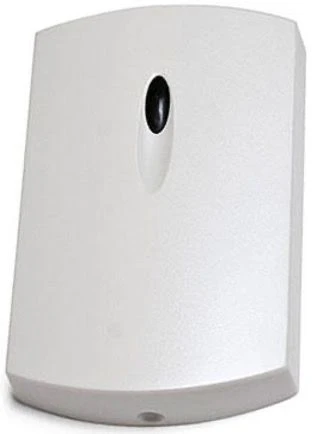

RFID Reader 13.56 MHz and 125 kHz, Model: Matrix-III (mod. RD_All)

Available for Import

RFID Reader 13.56 MHz and 125 kHz - Ideal for Access Control Applications

Electrical Interface Devices

Manufacturer: OTK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

125 kHz RFID reader, model: Matrix-III (E S mod.)

Description

Designed for use in access control and management systems (ACS) to transmit to the controller the code of an identifier brought to him (card, key fob, bracelet, etc.). Features of the reader: - reads codes of identifiers 125 kHz (EM-Marine and HID ProxCard II) and 13.56 MHz (Mifare); - automatic determination of the standard of identifier without additional settings and the transfer of the number of protocols Wiegand-26, Dallas Touch Memory, RS-232, RS-485; - the ability to update the "FirmWare" product by the user via RS-232, RS-485.

Specifications

Operating frequency

13.56 MHz, 125 kHz

Type of identifiers used

Mifare (13.56 MHz), EM-Marine and HID ProxCard II (125 kHz)

Defining the card standard

Automatic, without additional settings

Reading range

2...10 cm

Output interface

Ibutton (Dallas Touch Memory), Wiegand 26, RS-232, RS-485

Maximum line length from reader to controller: Dallas Touch Memory

No more than 15 m

Maximum length of line from reader to controller: Wiegand

Not more than 100 m

Maximum length of line from reader to controller: RS-232

5 m

Maximum line length from reader to controller:RS-485

1200 m

Light and sound indication

Got it

External control of LED and sound

Got it

DC supply voltage

B1/B8 2100/900 MHz V

Current consumption in card standby mode

Not more than 80 mA

Dimensions

115x75x22 mm

Execution

Surface-mounted housing with cover, circuit filled with compound

Operating temperature

-40...50 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
