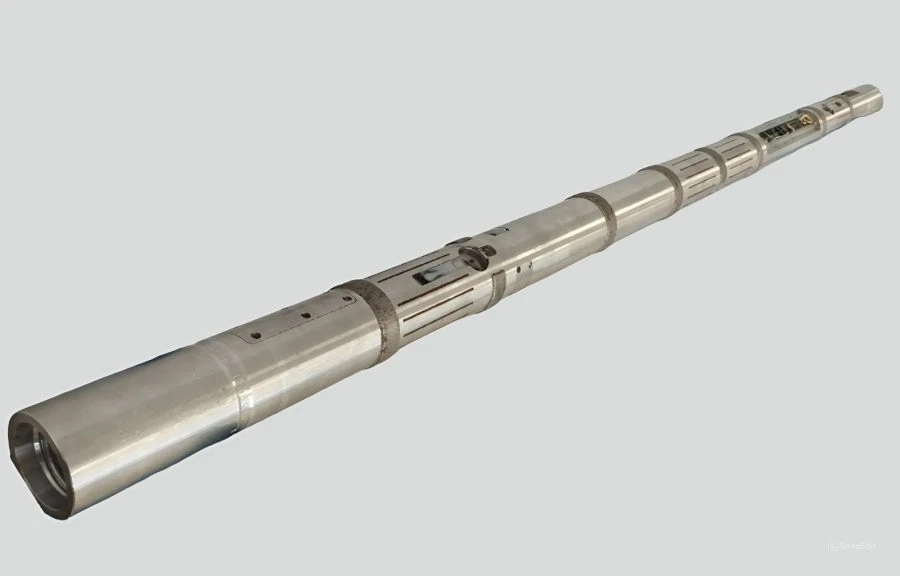

Resistivity Meter 95 for Environmental Resistance Measurement

Available for Import

Resistivity Meter 95 for Accurate Measurement of Environmental Resistance

Geophysical Instruments

Manufacturer: OIL-SERVICE LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Resistivimeter 95 is designed to determine the volumetric resistance of the environment during drilling operations as part of a telemetry system. The principle of operation of resistivimeter is based on excitation of electromagnetic field in the environment with subsequent measurement of attenuation of amplitude and phase shift of electromagnetic wave in receiving antennas. The volumetric resistance of the medium is calculated from the measurement results. Measurements of rock conductivity are made at frequencies of 2 MHz and 400 kHz. The resistivimeter is powered by a telesystem with a nominal voltage of 36V.

Specifications

Power supply voltage

NZ-150-14,5 V

Maximum tensile load as part of a telesystem

15 t

Maximum compression load as part of the telesystem

10 t

Maximum pressure in the telesystem component

100 MPa

Operating temperature range

-30...125 °C

Mass as part of the telematics system

150 kg

Full length with protective plugs

3582 mm

Length along the hull as part of the telesystem

3010 mm

Diameter across the translators

102 mm

Body diameter with hardbanding

100 mm

Body diameter excluding hardbanding

95 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
