Resistance Temperature Sensor Signal Input Device, 8 Channels, Galvanic Isolation (MIRage-NPT)

Available for Import

Resistance Temperature Sensor Signal Input Device for Accurate Temperature Measurement in Industrial Applications (MIRage-NPT)

Automatic Control Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

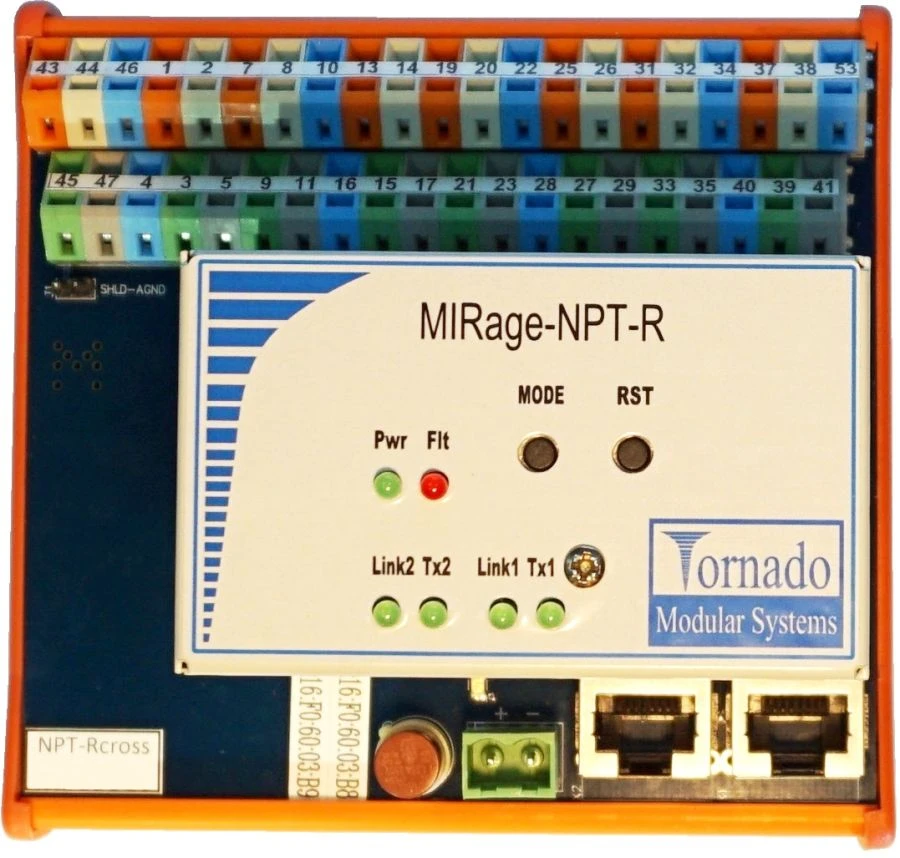

The MIRage-NPT devices are designed to measure temperatures using resistance thermocouples (RTDs) of different graduations and transmit the measured values via a redundant digital interface Ethernet 10/100 over twisted pair using ModBus protocol. The MIRage-NPT devices have 8 measuring channels (IR). The interface of each IR assumes connection of sensors by 4-wire, 3-wire and 2-wire scheme.

For each IR there are four terminals for connection - two terminals of the measured voltage input, one contact of the current output, one contact common. During measurement, the input voltages from the IRs are multiplexed into a single signal for the analogue-to-digital converter (ADC), and the common current source is multiplexed to the current output for that channel. The devices have one additional internal reference channel that serves for internal automatic calibration.

MIRage-NPT devices are designed for creation of automated process control systems.

Specifications

Measured resistance range at gain x1

0...3200 ohm

Consumption current, max.

95 mA

Operating temperature range

-25...70 °C

Wago terminal block, conductor cross-section up to

2.5 mm²

Mechanical design

DIN rail mounting

Weight, not more

400 year

Overall dimensions

114x108x111 mm

Galvanic insulation

Group

Input impedance, more than

1 gOhm

External supply voltage (+/- 15%)

24 V

Data exchange protocol

Modbus TCP/UDP slave

Data transfer rate

Request response time at 100 Mbit network speed, no more than

Interface type

Ethernet 10/100BaseTX - 2 channels

Number of measuring channels

8 pcs

Maximum permissible input voltage

Plus/minus 10 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
