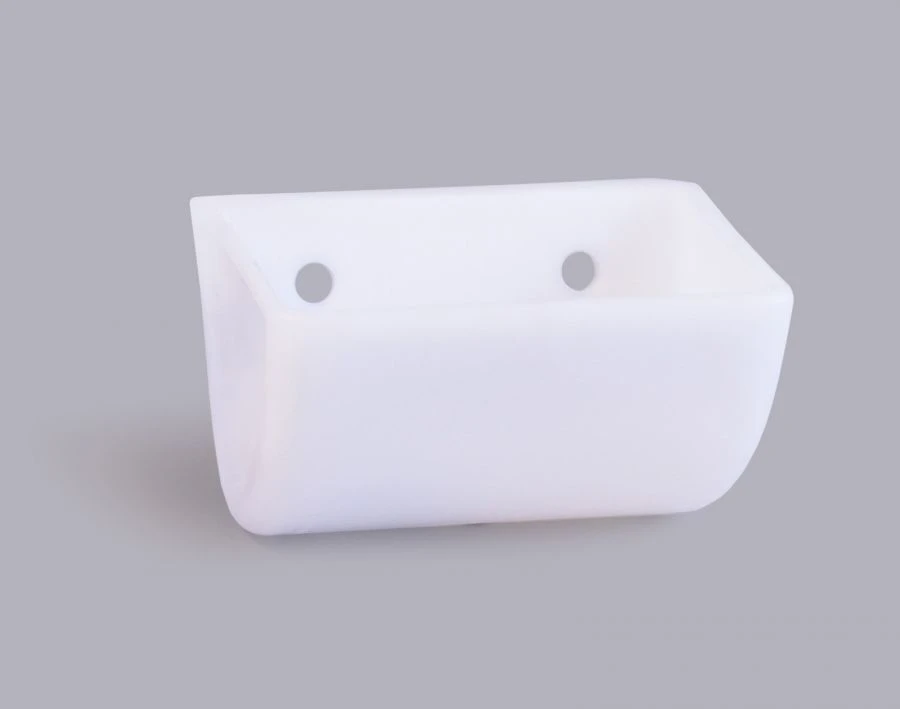

Bucket elevator RAV 005U - reinforced (width 110 mm, outreach 88 mm, height 70 mm). Intercentre distance 57 mm, 2 holes. Bolt for fastening m8*30. Bucket with total volume 0,33 litres, working volume 0,25 litres.
The weight of the product is 75 g.
Diameter of holes and inter-centre distance can be made according to customer's order.
Advantages of using polymer buckets:
1. explosion safety, as there is no possibility of a spark when the edge of the bucket touches the nori pipe;
2. grain and seeds are not injured due to the elasticity of the bucket edge;
3. energy consumption is reduced due to the low weight of the bucket.
4. adhesion of hard and wet products is excluded due to low adhesion of products to the polymer surface;
5. polymer buckets have significant rigidity, do not change geometric shape during operation, are corrosion-resistant and quiet in operation.
