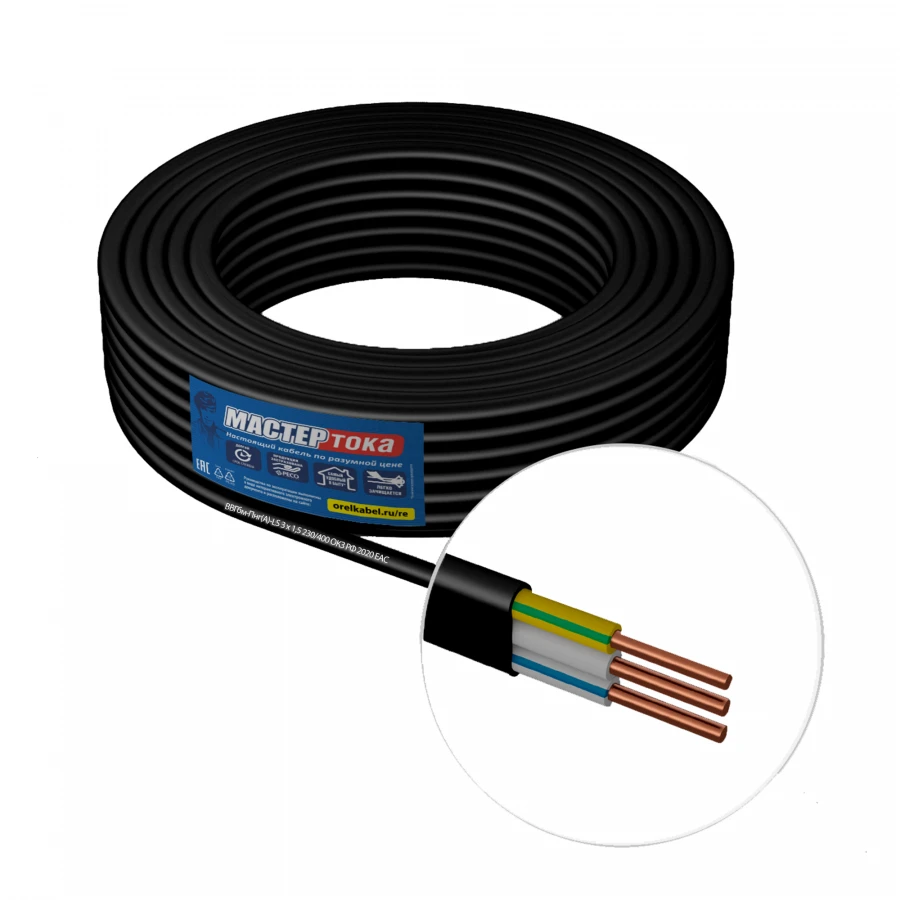

PVC Insulated Power Cable VVG-Png(A)-LSAvailable for Import

PVC Insulated Power Cable VVG-Png(A)-LS for 0.66 kV Applications

Stationary Power Cables 1kV
Manufacturer:OKZ OJSC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Power cable VVG-Png(A)-LS

Description

Cables in polyvinylchloride insulation and sheathing for rated voltage 0,66 kV TU 3581-013-89737265-2017 effective date 01.05.2018

Specifications

Material of conductive cores
Copper conductive cores
Number of conductive cores
5
Design of conductor core(s)
ok-single-wire round
Cable cross-sectional shape
Flat
Availability of reservations
Unarmored (D)
Availability of metal screen
No screen
Insulation material of conductive cores
Polyvinyl chloride plasticate insulation, including reduced fire hazard (B)
Outer sheath material (if no armor)
Polyvinylchloride plastic, including those of reduced flammability or reduced fire hazard
Nominal cross-section of conductive cores
1...6 mm²
Cross section of conductive cores
1...6 mm²
Rated AC voltage
660 V
Number of conductive cores
1-6

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, RussiaCIF Available to major ports worldwideEXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C)Wire Transfer (T/T)Escrow Services
