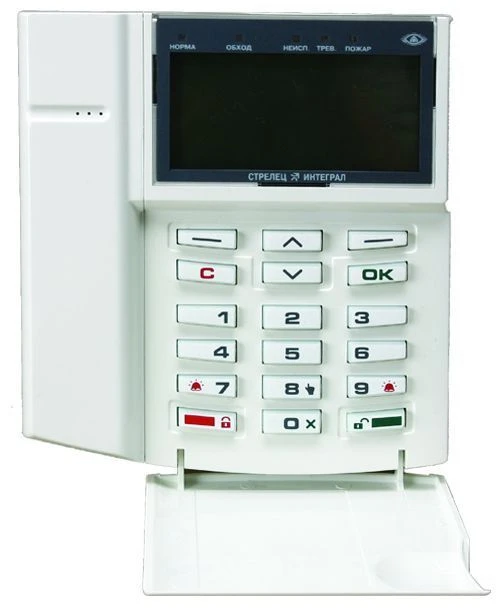

PS-I Segment Control Panel for Efficient Management of Security Systems

The PS-I segment control panel is designed to control the status of partitions and equipment of the integrated security system "Strelets-Integral". For data exchange the SAR-I uses the ISB S2 network interface. The PS-I has a control keyboard with 18 keys, an LCD indicator containing text-graphic and pictogram areas, a sound signalling device, as well as LED indicators: "Power", "Sound off", "Disconnect", "Fault", "Auto disconnect", "Alarm", "Fire", "Start".

The PS-I provides viewing the status of devices, partitions, groups of partitions, groups of executive devices of the segment, viewing the event log of the segment controller, as well as controlling the equipment of the ISB segment. It is powered from an external DC source with voltage from 9 to 28V. PS-I consumption current at 9 V is not more than 120 mA, at 12 V - not more than 90 mA, at 24 V - not more than 50 mA.

Average service life - not less than 10 years. Overall dimensions - 130×145×30 mm. Weight - not more than 0,4 kg.
