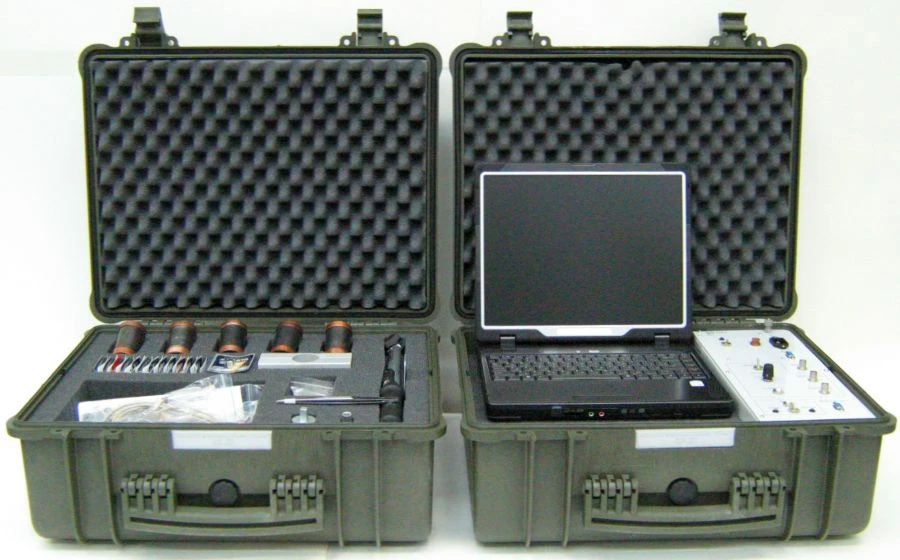

Pressure Measurement Equipment "ERD" AShV2.832.031

Available for Import

Pressure Measurement Equipment "ERD" for Artillery Applications

Pressure Measuring Instruments

Manufacturer: NTIIM FSUE

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Pressure measuring equipment "ERD-6000"

Description

The pressure measuring equipment "ERD" ASHV2.832.031 (hereinafter referred to as "ERD" equipment) is designed to measure pressure in the loading chamber of an artillery gun during firing with storage of digital measurement information in non-volatile memory, for reading and subsequent processing of measurement information, for presentation of measurement information in the form of graphs and tables on the PC monitor screen and hard copy. Set of pressure measuring equipment "ERD" ASHB2.832.031 1 Coordination unit BSR3 1 pc; 2 ERE device ASHV2.832.045 5 pcs; 3 Laptop 1 pc; 4 Printer 1 pc; 5 Manipulator of "Mouse" type 1 pc; 6 Mouse pad 1 pc; 7 Carrier No. 1.

MS OFFICE </em> 1 pc; 8 Carrier No. 2. Special ERD software * 1 pc; 9 Set of operating documentation consisting of: 9.1 Operation manual 1 pc; 9.2 Formulary 1 pc; 9.3 Special software.

Operator's Manual 1 pc; 10 Set of mounting parts: 10.1 Measuring cable...

Specifications

Sensitivity of pressure sensor T10000K, not less, pCal/MPa

10

Charge-to-digital conversion factor, units/pKL

0,240 ± 0,015

Sampling frequency, kHz

220,50 ± 0,50

RMS error of pressure measurement up to 800 MPa, %

4

RMS error of pressure measurement from 800 to 900 MPa, %

3

Maximum time in Standby mode

48

Operating conditions of ERE device (remote part of the equipment) - ambient temperature

-30...40 °C

Operating conditions of the laboratory part of the apparatus - ambient air temperature

5...40 °C

Measured pressure range

0...900 MPa

ADC conversion digit capacity

B1/B8 2100/900 MHz
