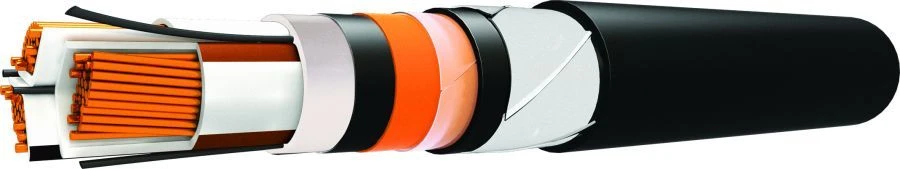

Power Cable with Plastic Insulation for 6 kV Voltage - VBSHv

Manufacturer: Samara Cable Company OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Conducting core - copper single-wire or multi-wire, sector or round shape, 1 or 2 class according to GOST 22483-2012. Electrical resistance of conductive cores, recalculated for 1 km of cable length and temperature 200C, corresponds to 1 and 2 class of GOST 22483-2012.
insulation of conductors - polyvinylchloride plasticate.
Twisting - insulated cores of multicore cables are twisted in the core by right-handed twisting.
Belt insulation - made of polyvinyl chloride plasticate.
Protective cover:

- cushion - tapes of polyvinyl chloride plasticate, polypropylene, overlapped wrapping.
armour made of two steel galvanised tapes, applied spirally.

so that the upper tape overlaps the gaps between the coils of the lower tape. tape;

- protective hose made of polyvinylchloride plasticate.
The nominal thickness of the protective hose complies with the requirements of GOST 31996-2012.</li> </ul>.

Cross section

240 mm²

Rated AC voltage

0.66; 1; 3 kV

Climatic version

UHL

Number of cores

5 pcs
