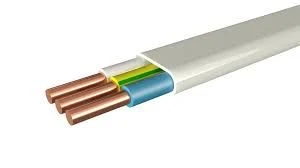

Power Cable with Copper Conductors and PVC Insulation, BVG-P-0.66-TU Available for Import

Power Cable with Copper Conductors and PVC Insulation for Reliable Electrical Applications

Copper Power Cables 1kV
Manufacturer: NKZ CABLE-CENTER LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Power cables for rated voltage 0,66 kV, with copper conductors number from 2 to 3 inclusive, cross-section from 1,5 mm2 to 10 mm2 inclusive, with insulation and sheathing made of polyvinylchloride plasticate, mark VVG-P. The products are manufactured in accordance with TU 27.32.13-002-05459832-2018 "Power cables with plastic insulation for rated voltage of 0,66 and 1 kV. Technical conditions".

Serial production. Conforms to the requirements of ?? ??

004/2011 "About safety of low-voltage equipment". OKPD 2 OK 034-2014 code: 27.32.13.111.

Specifications

Rated AC voltage
0.66 kV
Material of conductive cores
Copper rod
Insulation material of conductive cores
polyvinyl chloride plasticate
Availability of reservations
no
Armor type
no
Outer sheath material (if no armor)
polyvinyl chloride plasticate
Material of protective hose (if armor is available)
no
Availability of metal screen
no
Fire hazard class
?1.8.2.5.4
Cable cross-sectional shape
Round
Design of conductor core(s)
Monofilament
Nominal cross-section of conductive cores
10 mm²
Number of conductive cores
3
Mark
Power cable
Design
Cable with copper conductors, with PVC insulation and sheath, cross section from 1,5 to 10 mm2, with number of conductors from 2 to 3.
Cable shape
Flat
Core material
Copper rod
Insulation material
polyvinyl chloride plasticate
Sheath material
polyvinyl chloride plasticate
Core diameter
3.5 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
