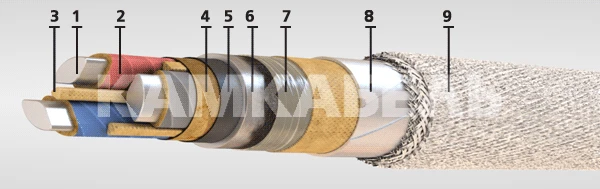

Power Cable with Aluminum Core AABL-1 4x150 for Underground Use

Aluminium Power Cables 1kV

Manufacturer: KAMSKY CABLE LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Cables are designed for operation in macroclimatic regions with temperate and cold climate. Cables are designed for operation in the ground (trenches) with low and medium corrosive activity with no stray currents, if during operation the cables are not subjected to tensile forces. Cables with non-flowing insulating impregnation composition (CAABL) are intended for laying on vertical and inclined sections of routes without limitation of level difference.

Specifications

Mark

AABL-1

Number and cross section of conductors, pcs x mm2

4?150

Estimated cable weight, kg/km

3680

Outer diameter

47.6 mm

Rated DC voltage

2.5 kV

Rated AC voltage with frequency 50 Hz

1 kV

Operating temperature range

-50...50 °C

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
