Power Cable NYM for Energy Transmission Available for Import

Power Cable NYM for Efficient Energy Transmission in Installations

Copper Power Cables 1kV
Manufacturer: ALFACAble LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

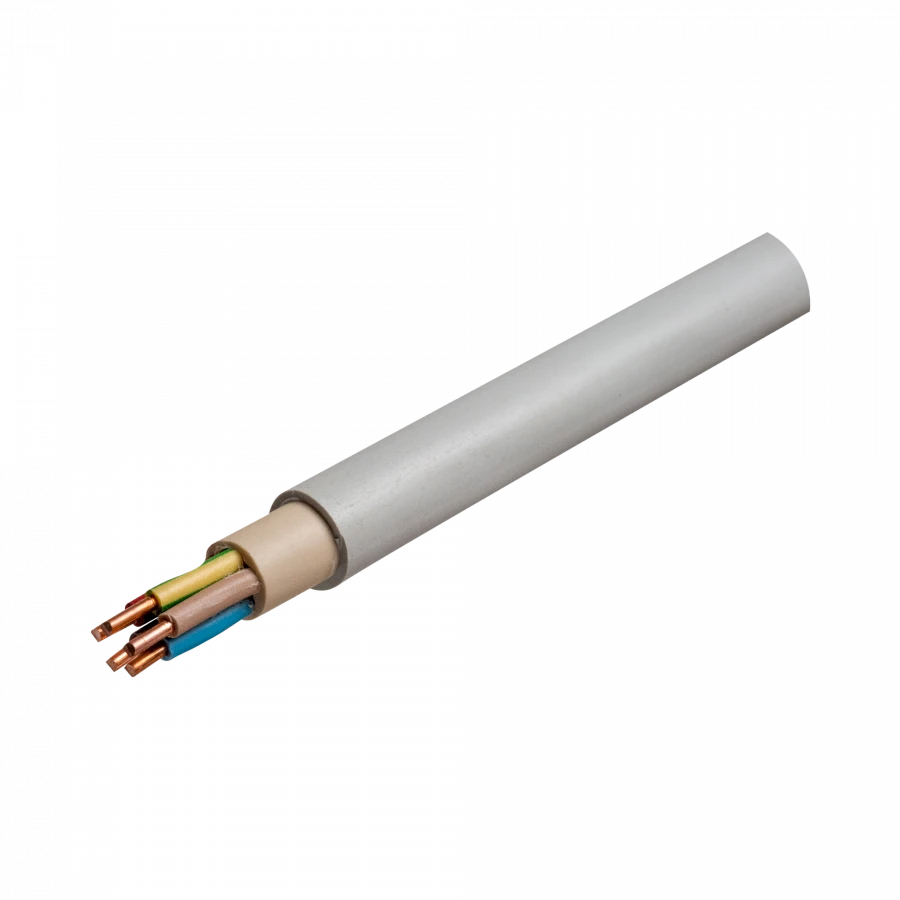

Power cable, with copper conductors, with insulation and sheathing made of PVC plasticates. The cable is designed for transmission and distribution of electric power in stationary installations for rated alternating voltage 0.66 kV frequency 50 Hz. Cables are used for stationary laying in lighting and power networks, designed for use in residential, domestic, administrative and industrial premises.

Specifications

Rated AC voltage
0.66 kV
Material of conductive cores
Copper
Insulation material of conductive cores
polyvinyl chloride plasticate
Availability of reservations
No reservations.
Outer sheath material (if no armor)
polyvinyl chloride plasticate
Material of protective hose (if armor is available)
No protective hose
Availability of metal screen
No screen
Cable cross-sectional shape
round
Design of conductor core(s)
according to GOST 22483-2021
Nominal cross-section of conductive cores
1.5...10 mm²
Number of conductive cores
1...5
Mark
NYM
Design
according to GOST 31996-2012
Cable shape
Round
Core material
Copper
Insulation material
polyvinyl chloride plasticate
Sheath material
polyvinyl chloride plasticate
Core diameter
1.5...10 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
