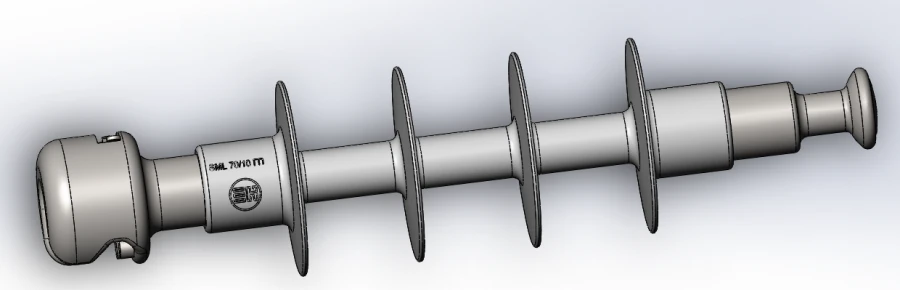

Polymer Insulator SML 70/10-3GP for Power Lines

Available for Import

Polymer Insulator SML 70/10-3GP for Power Line Insulation and Support

Electrical Insulator Rods

Manufacturer: DAZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The insulators are designed for insulation and fastening of wires and lightning protection ropes of overhead power lines (hereinafter - overhead lines) and switchgear of switchgears of power stations and substations of alternating current with voltage up to 35 kV at ambient temperature from minus 60 °? to plus 50 °?, located at an altitude of up to 1000 m above sea level in areas with I-IV degree of pollution according to GOST 9920-89.

Specifications

Rated operating voltage

10 kV

Leakage path length

410 mm

Destructive mechanical force in tension

70000

Section length

321 mm

Withstand voltage of industrial frequency in dry condition

65 kV

Withstand voltage of industrial frequency in the rain

45 kV

Withstand voltage of lightning impulse

120 kV

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
