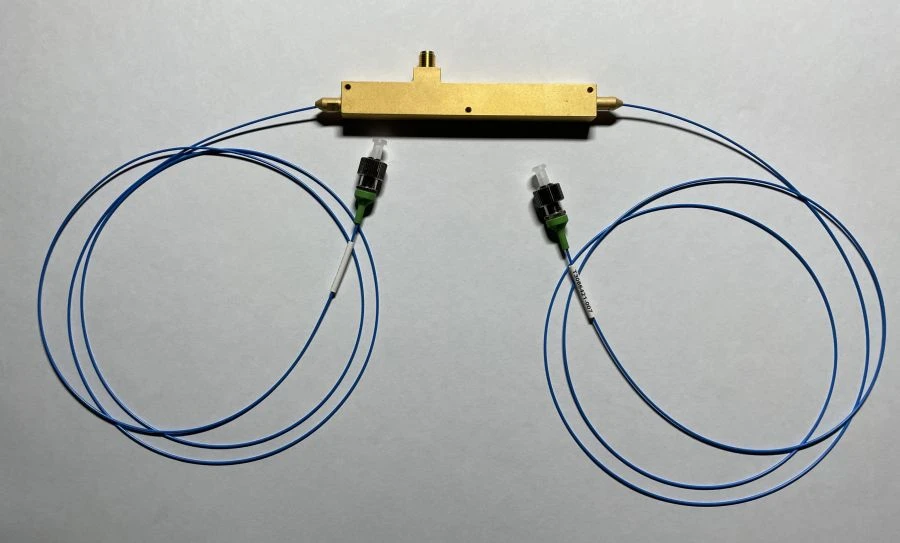

Phase Modulator GRTV.434833.001 for Coherent Electromagnetic Radiation Available for Import

Phase Modulator GRTV.434833.001 for Narrowband Coherent Electromagnetic Radiation

Telecom Equipment Parts
Manufacturer: SMARTQUANTTELECOM LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Phase modulator GRTB.434833.001 Functional purpose: provision of phase modulation of narrowband, linear-polarised coherent electromagnetic radiation in the wavelength range from 1530 to 1565 nm. List of functions: phase modulation of optical signal with wavelength (1550±20) nm by external electrical control signal. Field of application: photonic technologies, laser communication and data recording technologies, telecommunication systems and technologies, scientific research, laser and photonic instrumentation.

Reliability indicators: -Average MTBF 250,000 hours, not less. -Average recovery time not more than 25 minutes. -Average service life of 12 years, not less.

Specifications

Type of rear door(s)
no
Width
24 mm
Length
112 mm
Weight
0.06 kg
Height
10 mm
Number of optical ports
2 pcs
Type of optical ports
FC/APC
Operating temperature range
10...40 °C
Device type
no
Cable type
no
Connector
no
Type of accommodation
no
Availability of fasteners to the support (pole)
no

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
