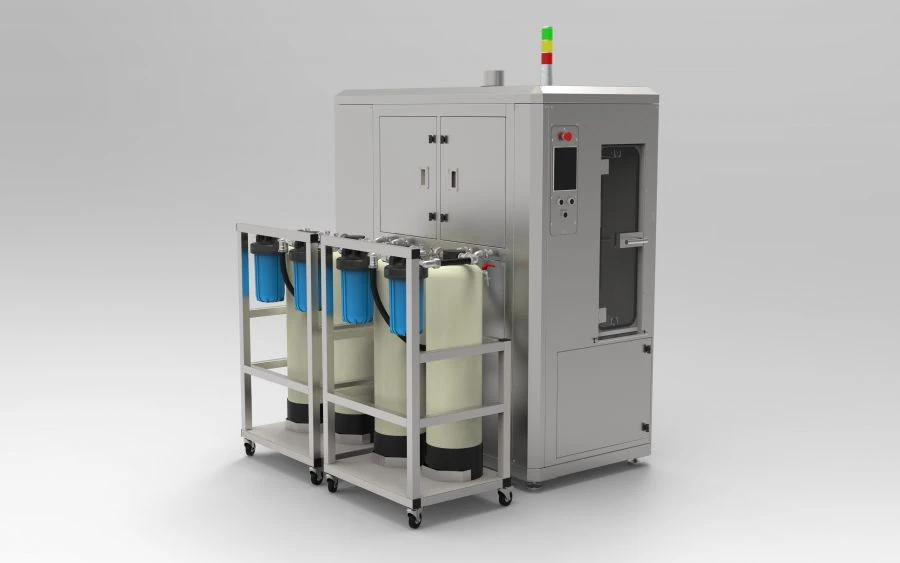

PCB Flux Cleaning System SM16Pro for Effective Circuit Board Cleaning
Manufacturer:
DIPOL TECHNOLOGIES OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Purpose: washing of mounted printed circuit boards from flux, solder paste and other technological means used in the process of soldering.
Functions: washing with washing liquid; preliminary rinsing; finishing rinsing; drying with hot air; rinsing with deionised water; automatic water refilling into tanks.
Advantages: equipment of Russian design and manufacture; high efficiency of board cleaning due to increased parameters of pressure and temperature of supplied liquid; possibility of flexible setting of washing modes and connection to PC; simplicity and efficiency in maintenance and operation; possibility of moving through standard doorways.
Functions: washing with washing liquid; preliminary rinsing; finishing rinsing; drying with hot air; rinsing with deionised water; automatic water refilling into tanks.
Advantages: equipment of Russian design and manufacture; high efficiency of board cleaning due to increased parameters of pressure and temperature of supplied liquid; possibility of flexible setting of washing modes and connection to PC; simplicity and efficiency in maintenance and operation; possibility of moving through standard doorways.
Specifications
50 Hz AC mains power supply
380 V
Overall dimensions (DxWxH), not more than
1700 mm
Dimensions of printed circuit boards, not more than
350 mm
Number of printed circuit boards
4 pcs
Maximum temperature in the rinse liquid supply system
65 °C
Maximum temperature in the water supply system of the rinse circuits
40 °C
Maximum pressure in liquid supply system
4
Electrical safety
Protective earthing of the system enclosure and the main electrical devices within it, automatic differential switches in the control circuits of electrical devices, phase control relays.
Temperature range in air drying mode
45...120 °C
Conductivity range in circuits with deionised water
1...1000
Control of liquid level in tanks
automatic with level sensors
Operating temperature
15...35 °C
Relative humidity during operation
80 %
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
