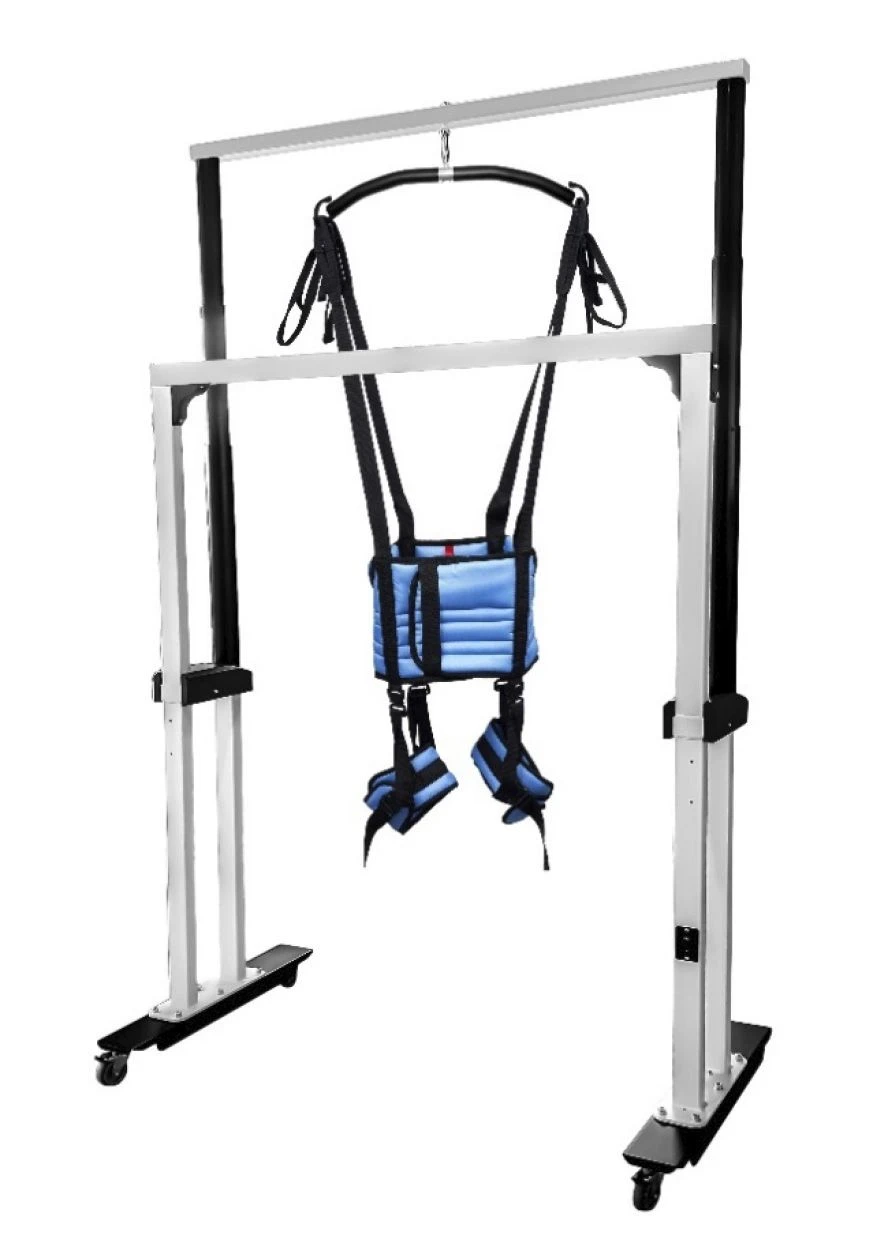

Patient Verticalization Rehabilitation Sling "Ortorent" Model "Ortorent L

Available for Import

Patient Verticalization Rehabilitation Sling "Ortorent" for Safe Mobility and Training

Therapeutic Equipment

Manufacturer: Ortorent LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Rehabilitation suspension for verticalisation of the patient "Ortorent", designed to lift and support the patient in order to move or conduct training with adjustable load on the lower limbs.
The suspension can be used for rehabilitation after injuries, for rehabilitation after strokes, for joint diseases of the limbs and for diseases accompanied by muscle weakness and movement coordination disorders.
Scope of application: in the conditions of medical and preventive institutions: in the conditions of gymnastic and rehabilitation halls, rooms for LFK and AFK; as well as at home..

Specifications

Equipment

Rehabilitation suspension for verticalisation of the patient "Ortorent" , in variants of execution. Model "Ortorent L"; 2-button control panel; Set of fasteners (set); Power cord; Spreader 650 mm.

Overall dimensions of the hanger (WxDxH)

1900 mm

Infinite height adjustment for patient height in the range of

1765...2745 mm

Internal distance between suspension struts

1240 mm

Minimum distance between handrails

995 mm

Maximum distance between handrails

1075 mm

Transport castors (wheels) integrated in the base of the hanger for easy handling

4 pcs

Diameter of transport rollers (wheels)

75 mm

Suspension weight

75 kg

Maximum patient weight

150 kg

Electric lift drive

2 pcs

Maximum power of each drive

800

Suspension power consumption

300 W

Patient height

800...2000 cm

Time required to move from the lowest to the highest position with maximum permissible load

Minimum continuous operation

Minimum distance between where the handrail is gripped by the hand and any other structural element

45 mm

Maximum braking force of the braking device

Maximum travel force with brakes removed

120

Minimum force to start driving with brakes applied

400

Maximum time for setting the operating mode

Infinitely adjustable to the patient's height by means of a button integrated in the stand

availability

The maximum height of the undercarriage (base height including wheeled chassis) for lifting a patient from a bed, couch or bedsi

110 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
