Panokam-180 4MP Digital Video Camera for Indoor and Outdoor Surveillance

Digital Video Cameras

Manufacturer:PANOCAM LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Digital video camera PANOKAM-180 2M

Description

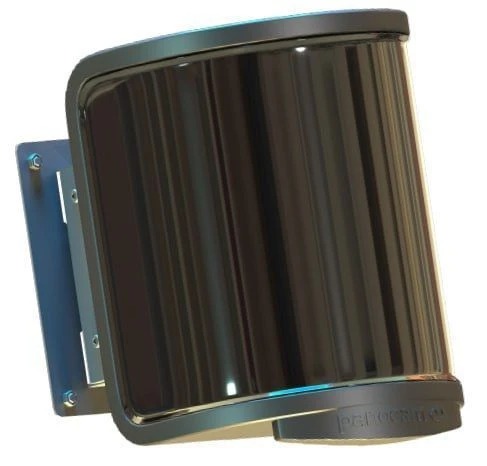

IP-camera Panokam-180 is designed to be installed indoors or outdoors to provide video surveillance function Resolution maximum: 4mp: 2592 x 1520, 20 frames\sec. Sensor: 1/2.8" CMOS progressive scan. Lens: 2.8mm ~ 12mm by default.

Viewing angle (horizontal): 91 deg ~ 27 deg; Viewing angle (vertical): 54.4 deg ~ 13.7 deg. Video encoding: up to 3 streams H.264 (BP, MP) / H.264+ (BP, MP) / H.265 / H.265+ / MJPG. Outdoor vandal resistant IP67 digital video camera.

Night vision: adaptive controlled IR illumination up to 30m. The device consists of a camera, visor and mounting bracket. Functionality briefly: motion detection, BLC, HLC, anti-fog, LDC, 2/3DNR, basic video analytics.

Specifications

HD format

2592*1520

HD format

2592*1520; 2560*1440; 2048*1520; 1920*1080

Number of megapixels of the sensor

Optical magnification

B1/B8 2100/900 MHz

Frame rate (fps)

Matrix size

1/3", 4.0 megapixel, progressive scan

Matrix type

1/2.8", 4.0 megapixel, progressive scan

Lens type

Variofocal

Compression

Ultra 265, H.265, H.264, MJPEG

Bitrate type

CBR; VBR

Resolution, frame rate third stream

720*576: Max 30 fps

Resolution, frame rate second stream

1920*1080, Max 30 fps

Resolution, frame rate first stream

2592*1520, Max 20 fps; 2560*1440 Max 25 fps; 2048*1520 30 fps

Image Mirroring

Horizontal; Vertical

Noise reduction system

2DNR; 3DNR

IR illumination control

Manual; Adaptive

IR illumination distance

30 m

Advanced events

Line Crossing; Area Crossing; Area Entry; Area Exit; Object Counting; Queue Counting; Face Detector Line Crossing; Intrusion; Area Entry; Area Exit; Area Exit

Network interface

10Base-T/100Base-TX Ethernet

Integration

ONVIF; API

PoE power supply

PoE (802.3af)

Protection class

IP67

Housing material

Metal

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
