Available for Import

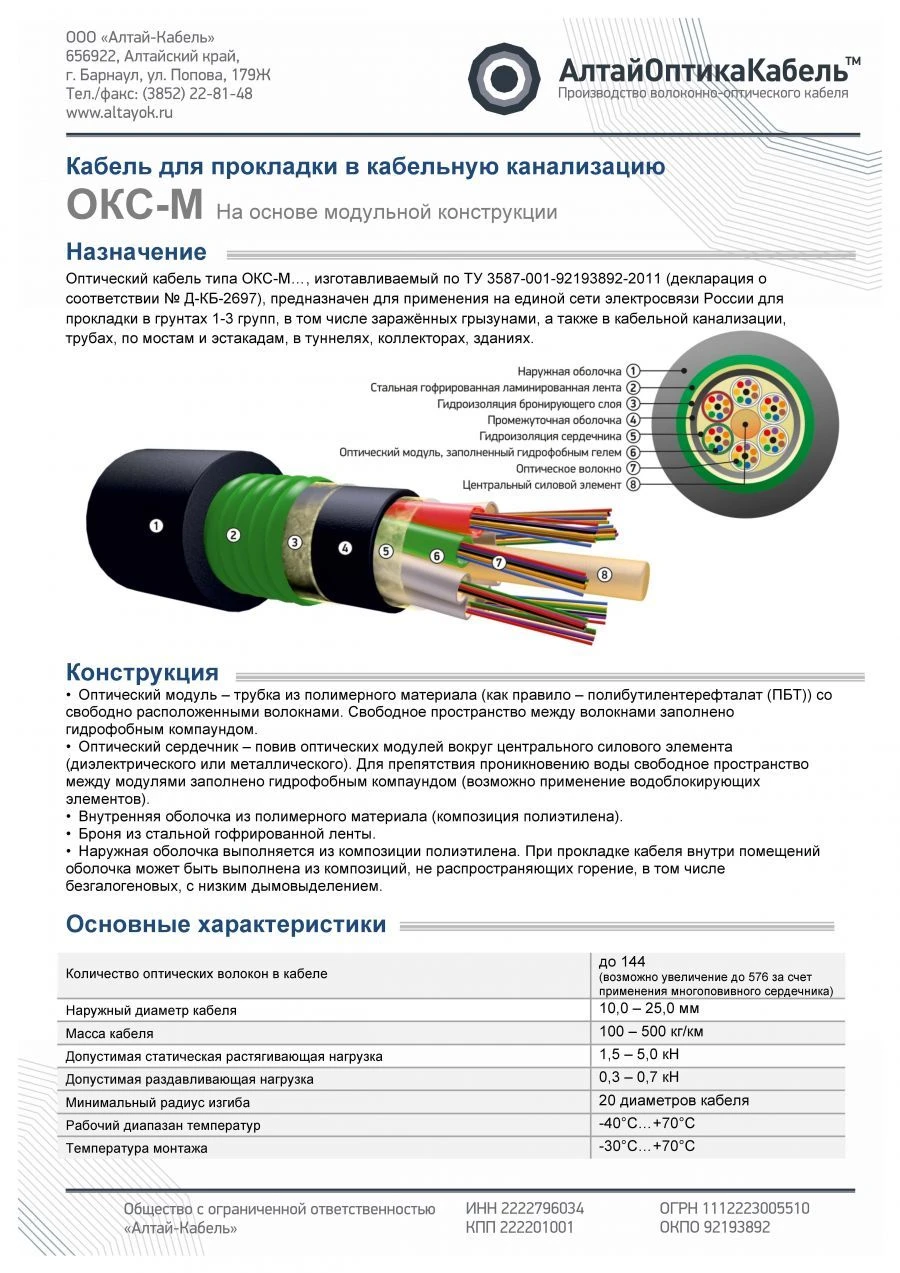

Optical Fiber Communication Cable OKSng(A)-HF-M for Underground Installation

Individual Sheathed Fibre Cables

Manufacturer: ALTAY-KABEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Fibre-optic cable for laying in soils of 1-3 groups, including those infested with rodents, in cable ducts, pipes, in cable trays, tunnels and collectors, on bridges and overpasses, between buildings and structures when suspended on an external power element, on facades of buildings, inside buildings and structures, can be used for laying on communication line supports and lighting poles. The cables can contain up to 720 optical fibres. The production uses fibres manufactured in the territory of the EAEU member states.

Attenuation coefficient at the working wavelength, dB/km: for ?=1310nm not more than 0.35; for ?=1550nm not more than 0.22. Cable operation temperature is from minus 40º? to plus 60º?.

Permissible tensile load is not less than 2,5 kN.

Specifications

Dimensions

5-25

Connection

Presence of protective covers

Armoured glass

Presence of conductive core

Dielectric design

Cable type

OK-GTS

Number of optical fibers in the cable

2...720 pcs

Type of containment material

not spreading combustion (ng) ; with reduced corrosivity of smoke and gas emission products (hf) ; with low smoke and gas emission (ls) .

Scope of application

for underground installation (3L)

Wavelength of single-mode fiber, µm

1.55

Single-mode fiber type

with unbiased dispersion ; with reduced losses at small bending radii ; with non-zero dispersion for broadband data transmission ; with biased non-zero dispersion ; with biased cutoff wavelength ; with biased zero dispersion .

Attenuation coefficient, dB/km

0;22

Type of optical fiber in the cable

single-mode

Cable type

underground

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
