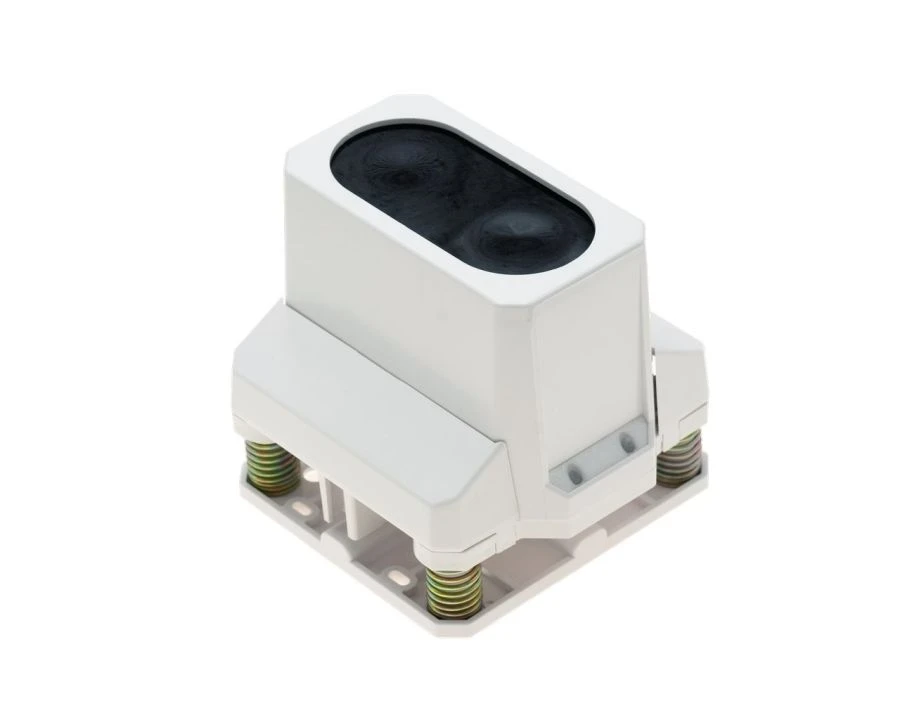

Optical-Electronic Linear Addressable Smoke Detector IP212-C6500-XX for Continuous Monitoring

Fire Alarm Detectors

Manufacturer: IVS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

IP212-75SM "IPDL-75SM" smoke detector optoelectronic linear fire detector

Description

The detectors are designed for continuous round-the-clock operation and are used in enclosed spaces of residential and industrial buildings and structures with addressable receiving and control devices of various manufacturers, switching with which is based on the protocol C200AR. Distinctive features of this modification: single-position version; working distance from 8 to 60, to 80, to 100, to 120 metres; precise screw adjustment mechanism. C6500-XX is a single-position linear addressable fire detector consisting of a transceiver and a reflector reflector. In the transceiver, the optical channels are separated and isolated in a two-chamber optical system. The C6500-XX uses a high-performance cataphone (retroreflector) as the reflector reflector. On the sides of the transceiver housing under the mounting covers are located terminal blocks for external connections, software switch tactics detector and connection connector tester MKS300-Tester.

Specifications

Degree of protection of the shell according to GOST 14254, IP

54 kg

Weight of the remote device UV-PPD-PRM, not more than

0.04 kg

Weight of the reduced reflector-reflector, not more than

0.07 kg

Weight of a standard reflector-reflector, not more than

0.45 kg

Weight of the transceiver, not more than

0.42 kg

Inertia of "Fault" notification fixation in the "Fault - Reduction" mode

40...60

Inertia of "Fault" notification fixation in the "Fault - excess" mode

40...60

Inertia of "Fault" notification fixation in the "Fault - Beam" mode

6.5...7.5

Inertia of "Fault" notification fixation in the "Fault - tolerance" mode

3...5

Inertia of "Fault" notification fixation in the "Fault - memory" mode

3...5

Maximum inertia of detector actuation (by signals "Attention" and "Fire")

Typical inertia of detector operation (for "Attention" and "Fire" signals)

Current consumed by the detector in the "Normal" mode, not more than

0.001 A

Detector supply voltage from PAS200 via C200AP interface

11.5...28 V

Maximum possible room area protected by one detector

1080

Maximum possible width of the area to be protected by one detector

9 m

Range of possible distances between the transceiver and the reflector-reflector

8...120 m

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
