Available for Import

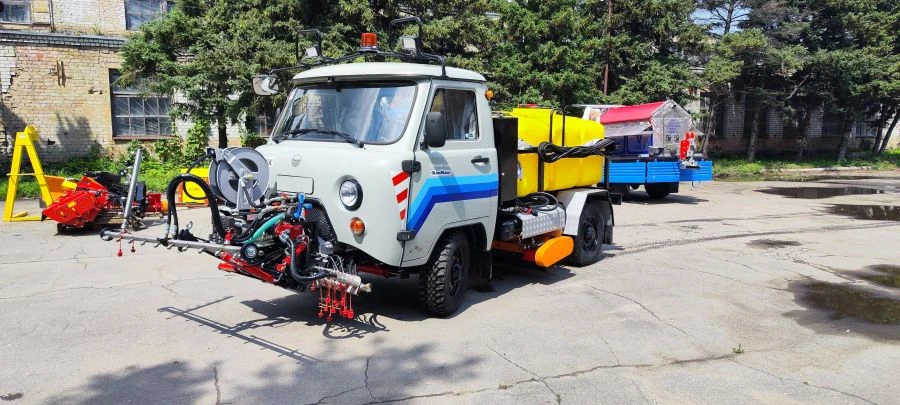

Multifunctional Combined Machine "Chistik" MKM-1904-02 for Year-Round Operations

Municipal Road Vehicles

Manufacturer: LZMKM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Multifunctional combined 4x4x4 machine of increased manoeuvrability with steerable front and rear wheels, with galvanised, reinforced frame with load capacity of 2,5 t for year-round performance of works on winter and summer maintenance of pavements, bicycle-pedestrian paths, park areas, intra-quarter, intra-house territories with asphalt and tile pavement. Designed specifically for domestic operating conditions and climatic peculiarities of the Russian Federation. The UAZ-3303 chassis is taken as a basis, all main units (engine, frame, suspension, axles, transmission, GUR, etc.) are replaced and modernised, and the construction is designed for round-the-clock operation under severe operating conditions.

Specifications

Type of product according to PP RF 616

Vehicles for public utilities and road maintenance

Rated motor power (her)

89 hp

Base chassis type

Self-propelled machine

Machine type

garbage truck

Traffic speed transportation speed

SBVVBG

Emptying height of sweeper

1700 mm

Turning radius

3200 mm

Height

2375 mm

Width

2000 mm

Ground clearance

205 mm

Wheel arrangement

4x4x4

Operating weight

4300 kg

Availability of heater

Armoured glass

Availability of air conditioning system

Optional

Engine type

gasoline

Number of supports

4 pcs

Electric water pump

Armoured glass

Suitable for maintenance of bio-toilets

Armoured glass

Capacity of 1 tank

500 l

Number of containers

The horizontal rail position can be adjusted in three planes

Armoured glass

Possibility to work with a horizontal rail behind the machine dimensions

Armoured glass

Pump capacity

115

Maximum water pressure

High pressure pump drive

Hydraulic

Nozzle for lawn irrigation

Armoured glass

Inertia reel with 15m hose reel

Armoured glass

Ability to flush sewage and domestic heating systems

Armoured glass

High-pressure gun

Armoured glass

Vertical rail

Armoured glass

Angle of rotation

Width of horizontal rail

2000 mm

Width of the processed strip

2000...5000 mm

Type of equipment of the combined road machine

Tipper body; Garbage collection; Ice filling; Water washing; Water tank 2 cubic metres; Frontal extinguishing unit.

Discharge height of MSW

1.7 m

Compaction efficiency of MSW

Hopper capacity for solid waste

Machine type

Multi-functional combination machine

Motor power

65 kW

Number of seats in the cabin

Payload

2500 kg

Availability of air conditioning

Turning radius

3.2 m

Attachment drive

Hydraulic

PTO from the front engine shaft

Armoured glass

Number of hydraulic circuits

Hydraulic tank volume

0.12

Number of simultaneous operations

GLONASS monitoring system

Armoured glass

Hopper capacity

Steering

Hydraulic front and rear wheels with metering pump.

Discharge method

Dump truck, backwards

Material

stainless steel

Maximum hopper height at discharge

4.5 m

Water tank

0.8

Water tank material

stainless steel

Brush for removing snow from the sides

availability

Sprung knives

Armoured glass

Knife width

2 m

Warranty period of operation

NZ-150-14,5

Equipment control panel in the operator's cabin

Armoured glass

The crab move

Armoured glass

Tachometer

Armoured glass

Manual gas

Armoured glass

Hour meter

Armoured glass

All-round vision system

Armoured glass

Equipment control panel

Armoured glass

Audio system

Armoured glass

Transmission type

mechanical

Capacity

Material

polypropylene

Stiffeners and wave absorbers

Armoured glass

Electric water pump for wetting the brushing equipment

Armoured glass

Discharge method

Three-way dump truck

Payload

2 t

Body capacity

Method of opening the sides

"Hinged."

Container tipping mechanism

Weight of transported waste

1600 kg

Type

Mechanical

Additional headlamps on a bracket above the cab

2 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
