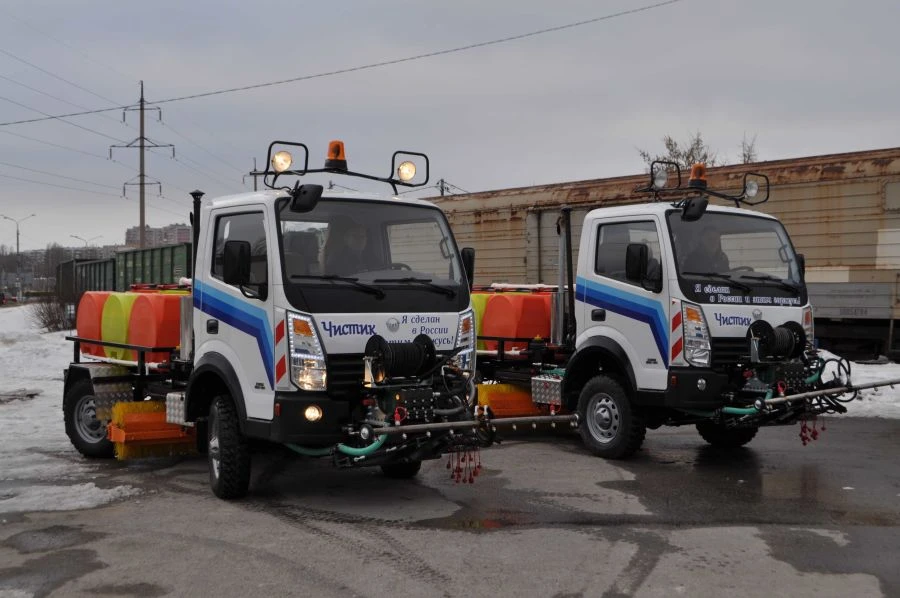

Multi-Functional Combined Machine MKM-1904-19 "Chistik" for Versatile Year-Round Applications
Manufacturer:
LZMKM LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Multifunctional combined 4x4x4 machine of increased manoeuvrability with steerable front and rear wheels, with galvanised, reinforced frame with load capacity of 2,5 t for year-round performance of works on winter and summer maintenance of pavements, bicycle-pedestrian paths, park areas, intra-quarter, intra-house territories with asphalt and tile pavement. Designed specifically for domestic operating conditions and climatic peculiarities of the Russian Federation. The UAZ-3303 chassis is taken as a basis, all main units (engine, frame, suspension, axles, transmission, GUR, etc.) are replaced and modernised, and the construction is designed for round-the-clock operation under severe operating conditions.
Specifications
Machine type
Combined road machine
Availability of air conditioning system
Armoured glass
Hopper capacity
1.35
Rated motor power (her)
89 hp
Base chassis type
Self-propelled machine
Type of product according to PP RF 616
Vehicles for public utilities and road maintenance
Engine type
gasoline
Availability of heater
Armoured glass
Operating weight
4300 kg
Wheel arrangement
4x4x4
Ground clearance
205 mm
Width
2000 mm
Height
2375 mm
Water tank volume
2000 l
Turning radius
3200 mm
Emptying height of sweeper
1700 mm
Width of the strip to be cleaned
2000 mm
Traffic speed transportation speed
SBVVBG
Type
Mechanical
Width of the processed strip
0.5...15 m
Weight of transported waste
1600 kg
Container tipping mechanism
Armoured glass
Method of opening the sides
"Little Book."
Body capacity
2
Payload
2 t
Discharge method
Dump truck backwards
Electric water pump for wetting the brushing equipment
Armoured glass
Stiffeners and wave absorbers
Armoured glass
Material
polypropylene
Capacity
2
Multilift - Sprinkle height adjustment
Armoured glass
Sand supply
screw
Hopper emptying sensor
Armoured glass
Adjustment of spreading width and spreading density
From the operator's cab (ECU)
Number of tedders
2
Sprinkling working area width
0.5...15 m
Hopper material
stainless steel
Width of the processed strip
1800...2000 mm
Floating mode
Armoured glass
Number of working blade sections
2
Angle of rotation
30
Number of working positions
7
Mounting method
Universal attachment
Number of working positions
3
Width of the processed strip
1600...1800 mm
Maximum performance
Flat grinder, Specialised grinder
Height of snow pile
500 mm
Width of the processed strip
2000 mm
Type of installation
Front mounting plate
Ice axe mounting option
Armoured glass
Wetting system
Armoured glass
Diameter of brush disks
550 mm
Width of the strip to be cleaned
1600...1800 mm
Transmission type
mechanical
Audio system
Armoured glass
Equipment control panel
Armoured glass
All-round vision system
Armoured glass
Hour meter
Armoured glass
Manual gas
Armoured glass
Tachometer
Armoured glass
Additional headlights
2 pcs
The crab move
Armoured glass
Equipment control panel in the operator's cabin
Armoured glass
Warranty period of operation
NZ-150-14,5
Knife width
2 m
Sprung knives
Armoured glass
Brush for removing snow from the sides
availability
Water tank material
stainless steel
Water tank
0.8
Maximum hopper height at discharge
4.5 m
Material
stainless steel
Discharge method
Dump truck, backwards
Hopper capacity
4
Steering
Hydraulic front and rear wheels with metering pump.
GLONASS monitoring system
no
Number of simultaneous operations
3
Hydraulic tank volume
0.12
Number of hydraulic circuits
2
PTO from the front engine shaft
Armoured glass
Attachment drive
Hydraulic
Turning radius
3.2 m
Availability of air conditioning
Armoured glass
Payload
2500 kg
Number of seats in the cabin
3
Motor power
65 kW
Machine type
Multi-functional combination machine
Hopper capacity for solid waste
4
Compaction efficiency of MSW
3
Discharge height of MSW
1.7 m
Front plow snowplow - Type
Rotary blade
Type of equipment
Front plow snowplow;
Width of the processed strip
2000...5000 mm
Width of horizontal rail
2000 mm
Angle of rotation
60
Vertical rail
Armoured glass
High-pressure gun
Armoured glass
Ability to flush sewage and domestic heating systems
Armoured glass
Inertia reel with 15m hose reel
Armoured glass
Nozzle for lawn irrigation
Armoured glass
High pressure pump drive
Hydraulic
Maximum water pressure
70
Pump capacity
115
Possibility to work with a horizontal rail behind the machine dimensions
Armoured glass
The horizontal rail position can be adjusted in three planes
Armoured glass
Diameter of brush disks
450 mm
Vibration damper
Armoured glass
Method of distribution
Spreading disk
Number of containers
3
Capacity of 1 tank
500 l
Suitable for maintenance of bio-toilets
Armoured glass
Electric water pump
Armoured glass
Number of supports
4 pcs
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
