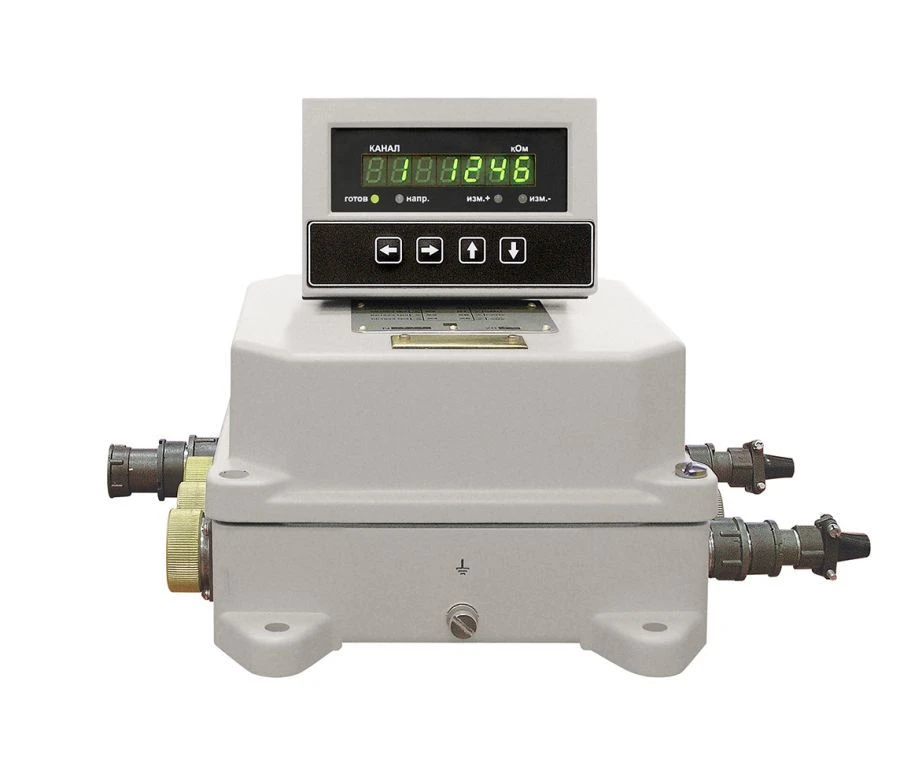

Multi-Channel Insulation Resistance Tester ISIM1623 for Reliable Insulation Measurement

Digital Ohmmeters

Manufacturer: VIBRATOR OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The ICIM1623 meters are designed for multi-channel automatic measurement of insulation resistance of isolated relative to "ground" AC, DC or dual current networks, which are energised or de-energised, and transmission of information to the control system. Control objects: three-phase and single-phase AC networks of 380 V or 220 V with frequency of 50 Hz or 400 Hz; DC networks with voltage up to 320 V (including 24 V and 27 V); double current networks; networks with removed operating voltage. Number of measurement channels - up to 60. Measurement range of equivalent insulation resistance of the network - under operating voltage - from 0 to 2000 kOhm, with removed voltage - from 0 to 5000 kOhm..

Specifications

Measuring range of mains resistance under operating voltage, kOhm

0-2000

Measuring range of mains resistance at removed operating voltage, kOhm

0-5000

Equivalent capacitance of the network with respect to the case , µF

100, 300, 500

Number of measurement channels

10...60 pcs

Power supply voltage

27 V

Power consumption

8 W

Meter composition

Converter unit BP1623, Switching unit BK1623, Indication unit BI1623.

Self-diagnostic mode

Self-diagnosis is carried out automatically when power is supplied to the meter, as well as at the operator's command

Interface

CAN2B

Operating temperature range

0...50 °C

Inspection interval

5 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
