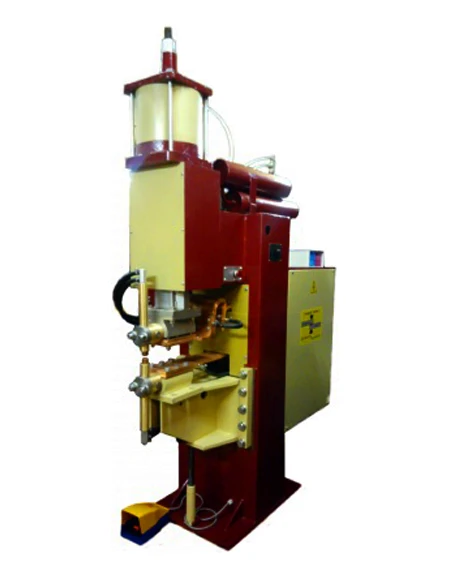

MT-4224L Contact Spot Welding Machine for Efficient Welding Applications

Electric Welding Machines

Manufacturer: KSLIM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Machine contact spot welding MT-4224L UHL4 is used for AC welding of parts made of low-carbon steels. Parts intended for welding should be free of oxide films and contaminants that prevent welding. The MT-4224L machine should be operated in closed premises at an altitude of not more than 1000m above sea level at the temperature of cooling water from plus 5°C to plus 25°C. The machine is manufactured in UHL4 version for operation in areas of temperate climate at ambient air temperature from plus 1°C to plus 35°C with relative humidity not more than 80% at temperature plus 25°C. Kind of welding current - variable; Drive welding force - pneumatic; Nominal compression force 2500 daN; Control system - welding controller on choice; Welded thicknesses: Low-carbon steel - from 1,0+1,0 to 10,0+10,0; Rebar class A400C, A500C - from 8,0+8,0 to 40,0+40,0.

Specifications

Type of product according to PP RF 616

Machine for resistance spot welding

Rated welding current

18000 A

Power

350 kW

Minimum welding current

5000 A

Operating voltage

380 V

Maximum welding current

40000 A

Maximum power consumption

350 kW

Dimensions

500*800*2400 mm

Weight

1300 kg

Type

Highest secondary current

Required mains voltage

380 V

Mains voltage at 50 Hz

380 V

Highest secondary current

18000 A

Type of welding current

Variable

Frequency of supply voltage

SBVVBG

Mains frequency

SBVVBG

Type of welding voltage regulation

step/phase

Load Duration (LL)

SBVVBG %

Equipment

RKS-1502M

Mark

MT-4224L

Modes of operation

Impulse

Length

1500 mm

Technical capacity, cycle/min

150

Width

800 mm

Height

2400 mm

No-load voltage

9...12 V

Power at SP=50%

248

Nominal electrode compression force

25000

Nominal solution

115 mm

Stroke of the upper electrode

100 mm

AC mains supply voltage

180 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
