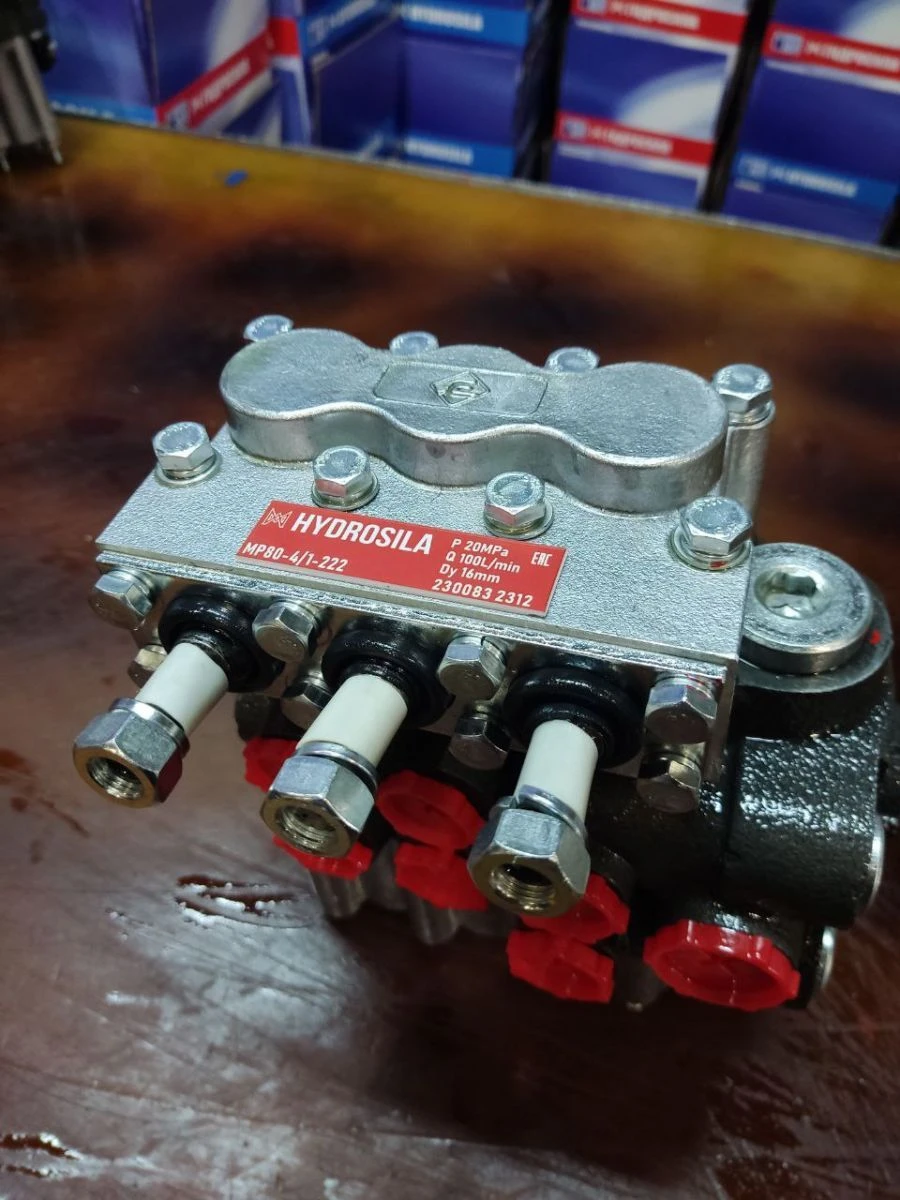

Monoblock Hydraulic Distributor R80 for Efficient Control in Agricultural Machinery

Monoblock hydraulic valves are installed on tractors, agricultural machines, loaders, excavators to control working bodies. Currently, the company produces a range of monoblock hydraulic valves for the flow rate of working fluid from 20 to 200 litres/min at the working pressure of 16 MPa. The number of spools is from 1 to 4.

Spreaders with hydraulic locks (index "G" in the designation) provide absolute tightness of the hydraulic main between the actuating mechanism (hydraulic cylinder) and the spreader, which excludes leakages from the hydraulic cylinder in the raised position. the hydraulic cylinder in the raised position. Ball-type hydraulic locks are installed in the "lifting" cavity of the spreader in quantity of 3-4 pieces.

Spreaders with and without hydraulic locks are completely interchangeable in terms of installation and functioning. This applies to all tractor.
