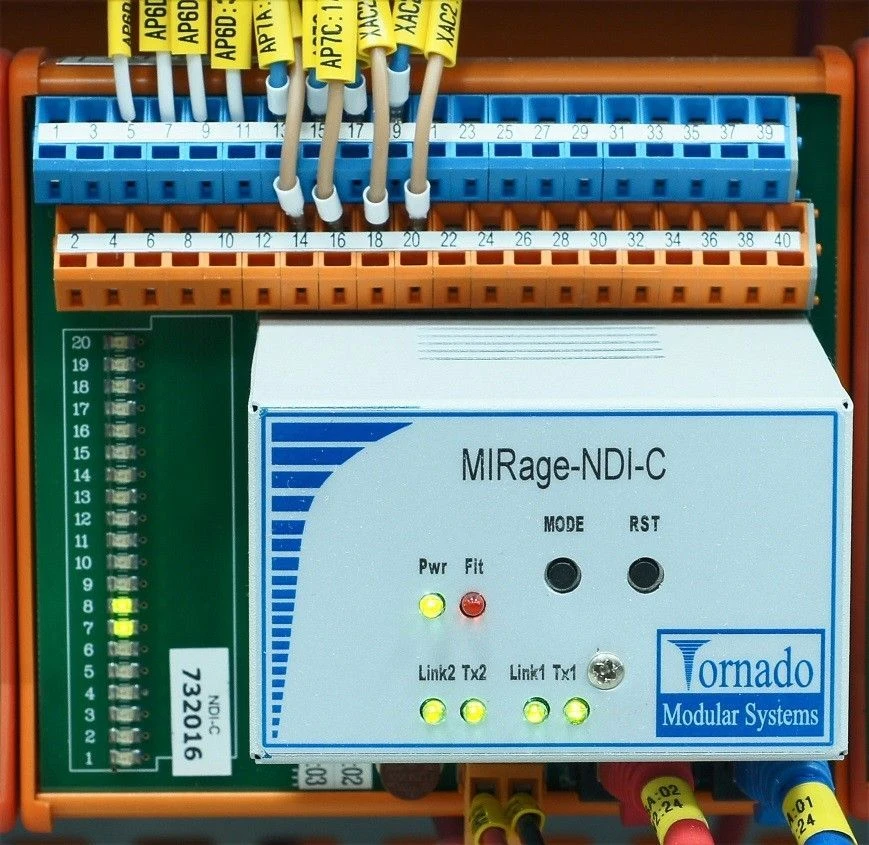

MIRage-NDI-C Discrete Input Device for Sensor Signals
All Categories

Categories

Language

Quick Links

WhatsApp Inquiry
MIRage-NDI-C Discrete Input Device Available for Import

MIRage-NDI-C Discrete Input Device for Monitoring and Control Systems

Data Processing Devices
Manufacturer: Tornado Modular Systems LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The MIRage-NDI-C devices are designed for input of discrete signals from sensors of "dry contact" type when building distributed information and control systems. The devices are designed to read the states of signals of discrete inputs and transfer values through a redundant digital interface Ethernet 10/100 over twisted pair using the ModBus protocol. MIRage-NDI-C devices have 20 discrete channels (DC). The "dry contacts" are powered from a 24 V source, which powers the device itself. The DCs are galvanically isolated from the system part. MIRage-NDI-C devices are designed for creation of automated process control systems (APCS) in various industries.

Specifications

Architecture
autonomous distributed I/O with redundant ethernet communication
External connectors
2 rj-45, +24v power supply, spring terminals for signal cable
Form factor
din-35 rail mount
Power Type
+24 dc
Base frequency of the processor
0.1
Polling time
2
Data exchange protocol
modbus udp/tcp slave
Power consumption
4 W
Galvanic insulation
Group
Dimensions width
114 mm
Weight
450 year
Type of measuring channels
input discrete potential signals 24v
Height
108 mm
Data transfer rate
100
Number of processor cores
1 pcs
Number of measuring channels
20

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
