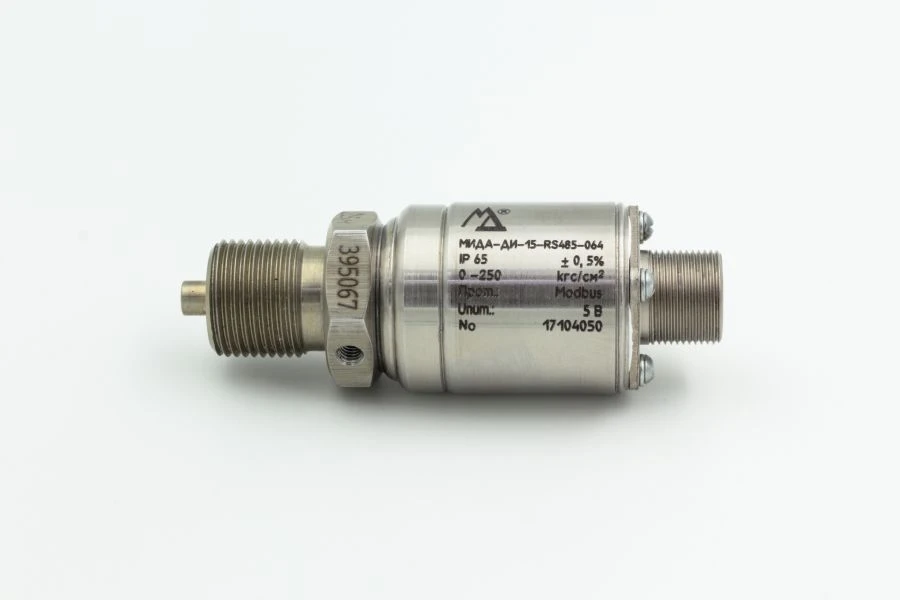

MIDA-15 Pressure Sensors for Continuous Measurement and Conversion
Manufacturer:
MIDAUS LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The MIDA-15 pressure transducers are designed for continuous measurement and proportional conversion of gauge pressure (DP), absolute pressure (AP), vacuum pressure (VP), gauge pressure - vacuum (LP) and pressure difference (PD) of liquids and gases into a current output signal, signal in the form of DC voltage or digital code (digital signal) interface UART with a special exchange protocol Mida, or digital code interface RS-485 with an exchange protocol based on the Modbus protocol or with the exchange protocol Mida in systems for monitoring and control of pressure, including explosive industries.
Specifications
Inspection interval
5 year
Climatic designs
UHL**3.1; U**2
Basic reduced error
0.05 %
Range reconfiguration depth
1:10
Hydrostatic pressure (HP), upper measuring limit
1600
Differential pressure (DP), upper measuring limit
0.001...0.16 MPa
Overpressure-dissipation (OPD), upper measuring limit
0.002...2.4 MPa
Overpressure (OD), upper limit of measurement
0.001...250 MPa
Absolute pressure (YES), upper measuring limit
0.004...10 MPa
Warranty period
4 year
Output signal, mA
4...20
Dustproof
IP65; IP68
Execution
General industrial and explosion-proof
Output signal, V
0.4...2 V
Output signal is digital
UART/Mida, RS-485/Modbus
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
