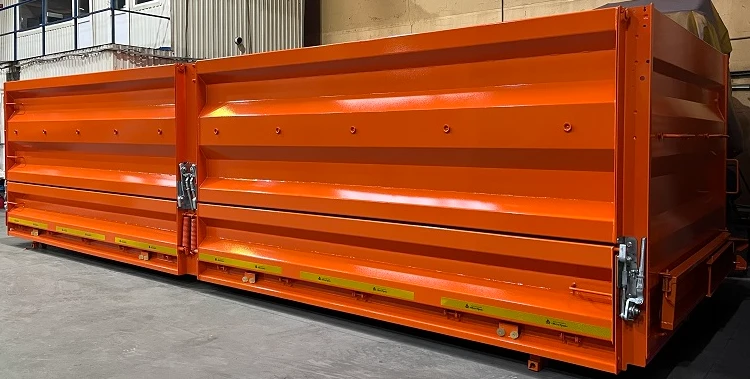

MegaTron 7500 Dump Body MT-0010010.7500 SB

Available for Import

MegaTron 7500 Dump Body for Efficient Agricultural Transport

Vehicle Bodies

Manufacturer: MEGATRON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Dumping platform with three-sided (two-sided) unloading, designed for the transport of bulk goods of national economy and agricultural products (grain, seed). Possible unloading angle on two sides is 45-50 degrees, backwards - 10...17 degrees. Dump body made of 09G2S steel has its own design features to keep working capacity and fulfil its functionality during the whole service life. The body is equipped with seals and accessories that ensure safety, reliability and convenience in operation.

Specifications

Height

2170 mm

Width

2550 mm

Length

8100 mm

Superstructure material

steel 09g2s., made in the form of profiled panels. the thickness of the board panels is 3 mm, floor decking - 4 mm.

locking mechanism

mechanical board locks are opened manually, lower side boards are equipped with a spring mechanism to facilitate board lifting.

Rear wall design

One-piece board on top hinge, either book or swing gate, with dispenser.

Side panel design

Top side - with top hinge, bottom side - with bottom hinge, height of bottom side 500mm (book version) Side boards in version with middle post

Weight of superstructure with subframe

3986 kg

Body volume

up to 33.35 cu.m.

Internal dimensions of the body

7500x2340x to 1900mm
