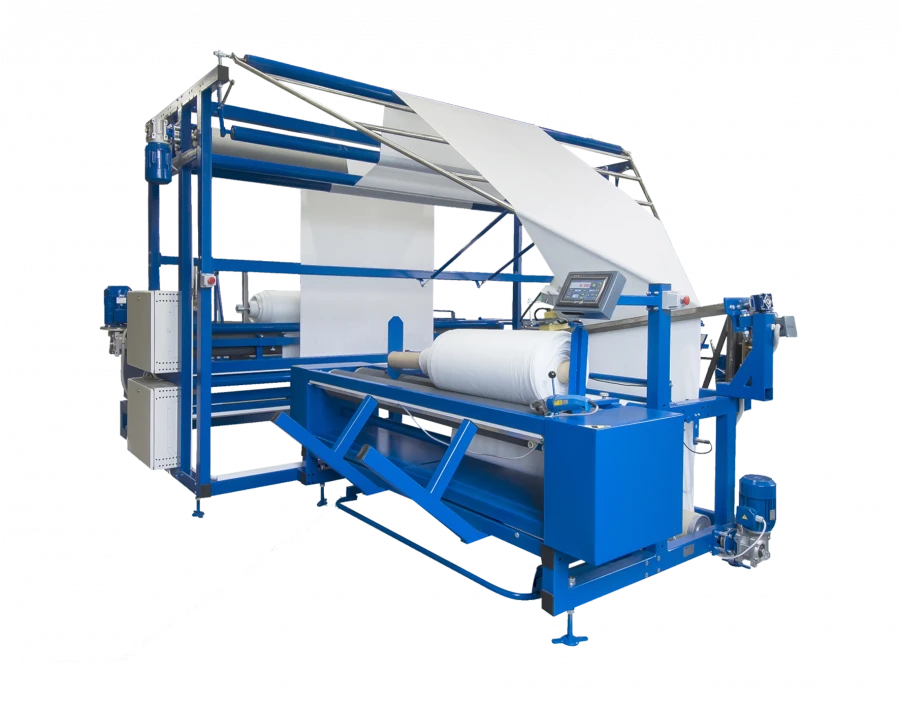

Measuring and Winding Machine Model C02.2 for Non-Woven Materials Available for Import

Measuring and Winding Machine Model C02.2 for Non-Woven Materials - Ideal for Rolls up to 3200mm

Textile Processing Equipment
Manufacturer: ROLLTEX LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Merilno-doubling machine model C02.2 is designed for doubling of material with its subsequent winding into a cylindrical roll on a cardboard bobbin and measuring the length. The machine provides work with rolls of materials weighing up to 400 kg and with diameter up to 1000 mm. It is available in bale widths up to 3200. The machine is mainly supplied to factories producing nonwovens (spunbond, geotextiles).

Specifications

Mark
Rolltex
Maximum bale diameter at inlet
1000 mm
Maximum bale weight at the inlet
400 kg
Maximum output bale diameter
600 mm
Maximum output bale weight
100 kg
Edge alignment unit
As standard. fabric guides.
Passport, operating and maintenance instructions
supplied with equipment
Rewinding scheme
From a cylindrical bale wound on a cardboard bobbin into a bale of material doubled on a cardboard bobbin with an outer diameter of at least 40 mm.
Rewind speed
0-100 m/min
Maximum bale width at the inlet
3200 mm
Maximum bale width at the inlet
1600 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
