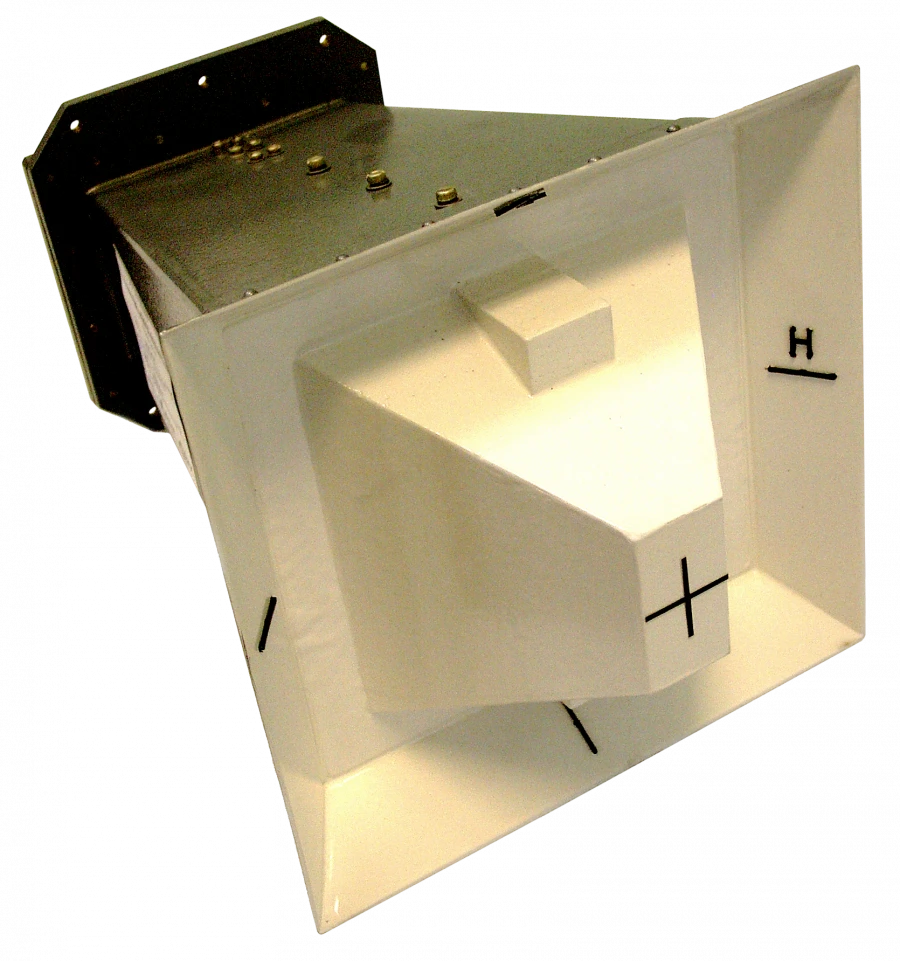

Measurement Horn Antenna P6-72 for Precise Antenna Measurements

Electrical Measurement Instruments

Manufacturer: CKBA OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The horn antenna is designed for use in antenna measurement applications. The antenna has a bandwidth overlap factor of 30 with small overall dimensions and mass.

Specifications

Frequency range

0.9...27

Directional width

73...4.5 °C

Polarization

linear

Side lobe level, not exceeding

-10

Weight

2.7 kg

Wave impedance

SBVVBG ohm

Overall dimensions

372 mm

Operating temperature

-60...60 °C

Level of cross-polarisation in the maximum of directional diagrams

-18

Voltage standing wave coefficient (VSWR), max.

2.5

Gain factor in the band 0,9-27 GHz

3.3...200

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
