Available for ImportMBE2S-PC Computing Module for Personal Computing Systems and Information Terminals
Manufacturer:MCST OJSC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

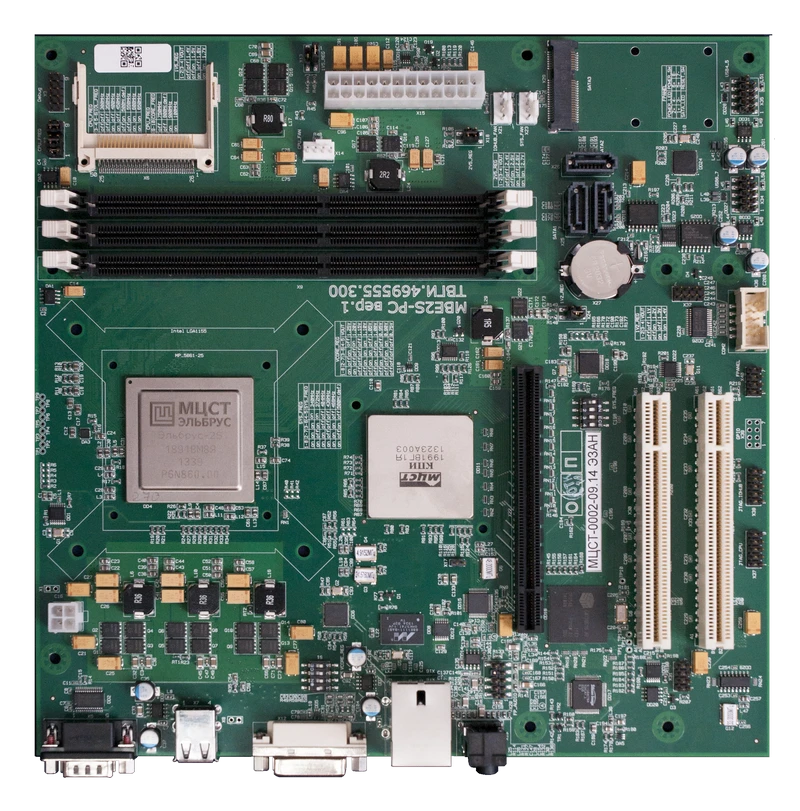

The MBE2S-PC computing module is a motherboard - system panel designed to function as part of personal computing equipment, information terminals, unified automation complexes. It is referred to the equipment of general application, operating in the mode of continuous, long-term use.
Specifications
Form factor
microATX
Expansion slots
1 PCI Express 1.0a x16 slot, works as x8 2 PCI 2.3 slots 32 bit 5.0 volts, 33 MHz frequency
Internal interfaces
1 AC'97 port with 10-pin connector for front sockets 1 FP pad with 8-pin connector for indicators and buttons on chassis 1 USB 2.0 pad with 10-pin connector for 2 front ports 1 RS-232 pad with 10-pin connector for second console 2 JTAG pads with connectors
External interfaces
1 DVI-I video port combining DVI-D and VGA interfaces 2 audio ports with 3.5 mm jacks 1 Ethernet 1000Base-T (802.3ab) network port with RJ-45 connector 4 USB 2.0 peripheral ports with type A connectors 1 RS-232 console port with DE-9 connector
Audio system
1 built-in controller Cirrus Logic Crystal CS4281 2.0-channel AC'97 audio output 1 microphone input, 1 line input
Video system
1 Silicon Motion SM718 embedded controller
Long-term memory
1 mSATA 2.0 SSD slot 3 SATA 3.0 ports for HDD and SSD drives 1 CompactFlash slot for memory card
RAM
3 slots DIMM 240-pin DDR3-1600 registered ECC, up to 24 Gbytes
Architecture
Elbrus
Processor
Elbrus-4C
