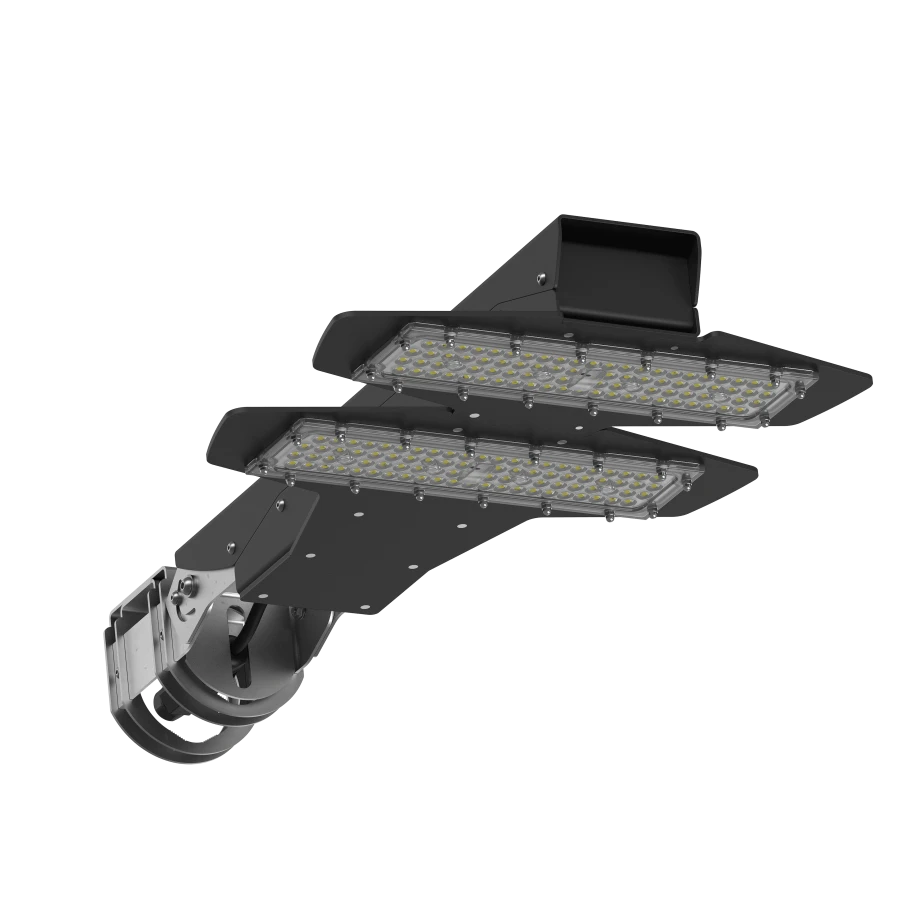

Major Avant-Garde LED Outdoor Light MSFT-ST32-284

Available for Import

Major Avant-Garde LED Outdoor Light for Effective Urban Illumination

LED Lighting Fixtures

Manufacturer: MASSEF TECHNOLOGIES LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Major Avangard series luminaires are designed for outdoor lighting of urban objects: streets, roads, parks, playgrounds, adjacent territories. The lightweight body of the luminaire is made of aluminium, in which a strong stainless steel bracket is integrated. The luminaire can be equipped with several types of brackets: cantilever brackets with extended tilt angle adjustment from +30 to -90 degrees for mounting on a pipe with a diameter from 34 to 65 mm, and wall bracket with tilt adjustment from +30 to 0 degrees. As a light source is used LED module complete with secondary optics. The luminaire includes the possibility of adjusting the power consumption and luminous flux in the claimed range, the choice of the angle of radiation and the type of CWS, performance on the correlated colour temperature and colour rendering index.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Temperature mode

-60...90 °C

Weight

3.5...3.9 kg

Height

73...110 mm

Width

330 mm

Length

492...570 mm

Degree of protection

IP67

Console seat diameter

34...65 mm

Adjusting the cantilever arm

30...-90

Adjusting the wall bracket

30...0

Number of bracket types

3 pcs

Network frequency

47...63

Power supply voltage

170...290 V

Luminous flux ripple factor

1 %

Color rendering index

70...89

Correlated color temperature

2700...6500 K

Light efficiency

120...147

Luminous flux

12410...27900 lm

Power consumption

99...195 W

Additional devices

NEMA, Zhaga connector for connection of the control device is provided

Warranty

5...7 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
