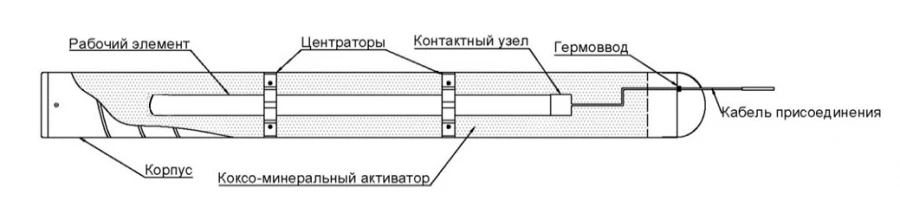

Magnetite Anode Earthing System Type PAZ.PTM.M.K with Cable Clamps

Available for Import

Magnetite Anode Earthing System Type PAZ.PTM.M.K for Surface Earthing Applications

Low-Voltage Electrical Panels

Manufacturer: PROMTEHMASTER LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Anodic magnetite earthing switches complete with activator type PAZ.PTM.M.K with a set of cable clamps (KZ) or thermite welding (TS), are designed for electrochemical protection systems as surface earthing of current-sinking circuits of cathodic protection against corrosion of steel and reinforced concrete structures in contact with soil, river and sea water and other electrolytic media. Type of climatic execution O5, B5, in accordance with GOST 15150-69..

Specifications

Type

Magnetite anode earthing electrode type PAZ.PTM.M.K

Climatic version

the products are designed for installation of current-sinking circuits operated under conditions of general climatic execution (o) and all-climatic execution (c) in accordance with state standard 15150.

Length

500...1500 mm

Material

Magnetite: mass fraction of iron oxide FeO - from 28 to 32 %; mass fraction of trivalent iron oxide Fe2O3 - from 56 to 64 %

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
