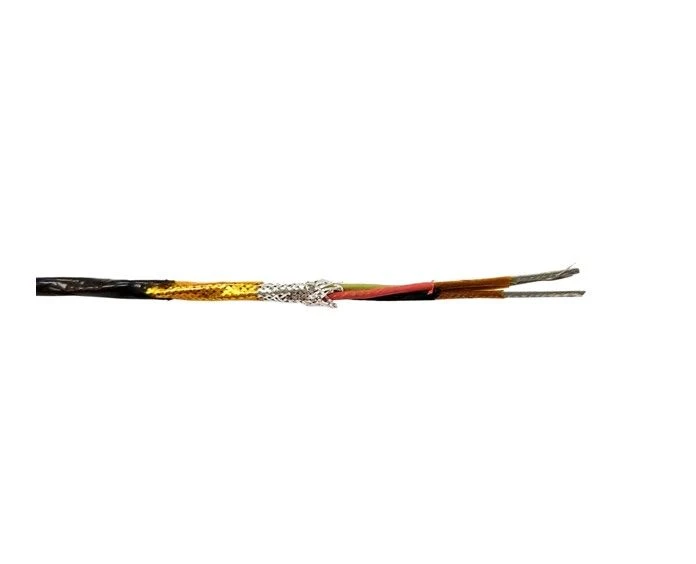

Low-Voltage Aircraft Wiring Cables (Type BK) - DKYUG.358300.014TU

Available for Import

Low-Voltage Aircraft Wiring Cables for Internal Electrical Networks - DKYUG.358300.014TU

On-Board Electrical Wires

Manufacturer: OKB KP OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The wires are designed for internal fixed installation of on-board electrical network of aviation equipment and operation at an electrical voltage of 250 V of frequency up to 6000 Hz (electrical voltage of 350 V) at atmospheric pressure from 0,67 to 60 kPa or electrical voltage 600 V of frequency up to 6000 Hz (electrical voltage 850 V) at atmospheric pressure above 60 kPa and temperature from minus 60 to 180 ° C in the screen of trimetallic wire TAS and temperature from minus 60 to 200 ° C in the screen of nickel-plated or silver-plated wires and silver-plated plated tapes.

Specifications

Electrical insulation resistance (from and to) MOhm

at least 1-10^5

Electrical resistance of the core (from and to) Ohm

108.33...11.22 ohm

Weight (from and to) kg

2.59...107.35 kg

Outside diameter (from and to) mm

0.84...6.46 mm

Operating temperature °C

-60...200 °C
