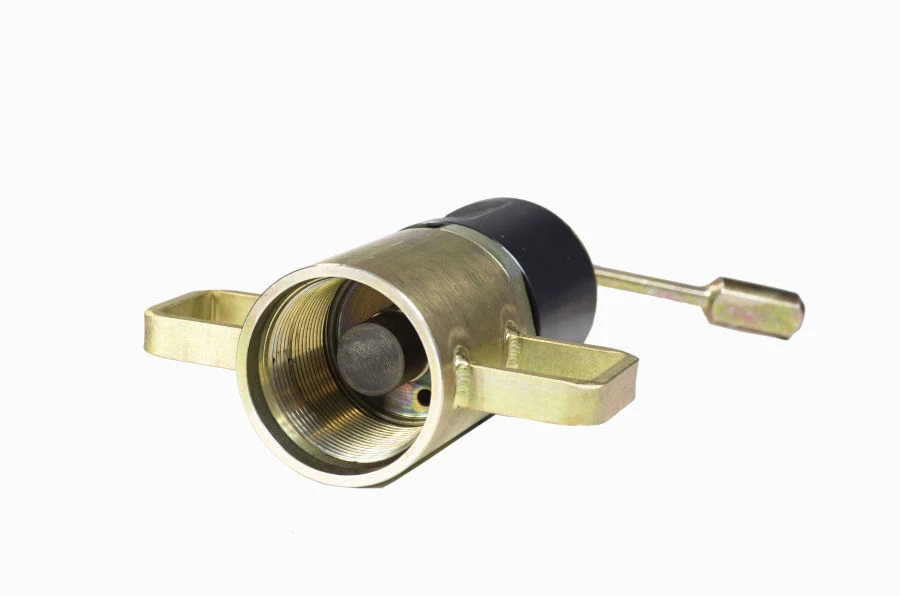

Liquid Level Sensor MGT PDU-1 for Monitoring Oil and Gas Wells

Automatic Control Devices

Manufacturer: MAGMATEK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MGT PDU-1 level sensor is designed to control the liquid level in oil and gas producing wells by echolocation method, as well as the pressure in the annulus space. The sensor is installed on the measuring socket of the wellhead fitting and provides recording of the echo signal for a specified time.Inside the hermetically sealed housing there is an electronic module and a battery. The housing has a connector for connection of the charger. Indication of the main operating modes is carried out with the help of LED indicators located in the housing of the device. Communication with the sensor is carried out via Bluetooth LE radio channel.

Specifications

Product weight

Less than 5 kg

Product life

More than 5 years

Operating temperature range

From -40 to +50 C

Method of establishing communication with the product

NFC

Communication channel range

More than 30 m

Sensor communication channel

Bluetooth LE

Charge time of the built-in battery

Less than or equal to 3 hrs.

Continuous product operation time in echogram recording mode

More than 80h.

Pressure resolution

0.1 kgf/cm2

Controlled pressure range

0 to 100 kgf/cm2

Level resolution

Less than or equal to 1 m

Range of monitored levels

20...6000 m

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
